S32K312 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
S32K312 ARM CORTEX-M7, 120 MHZ, 2 MB FLASH, CAN FD, HSE B SECURITY, 172 HDQFP - S32K MCUS FOR GENERAL PURPOSE/ REEL ROHS COMPLIA
| Part | Mounting Type | Program Memory Size | Package / Case | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Core Processor | Grade | EEPROM Size | Data Converters [custom] | Data Converters [custom] | RAM Size | Core Size | Number of I/O | Peripherals | Operating Temperature [Min] | Operating Temperature [Max] | Program Memory Type | Speed | Oscillator Type | Qualification | Connectivity | Supplier Device Package | Data Converters [custom] | Interconnect System | Contents | Utilized IC / Part | Board Type | Type | Suggested Programming Environment |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | Surface Mount | 2 MB | 100-QFP | 5.5 V | 2.97 V | ARM® Cortex®-M7 | Automotive | 128 K | 12 | 24 | 192 K | 32-Bit | 84 I/O | DMA I2S WDT | -40 °C | 125 °C | FLASH | 120 MHz | External Internal | AEC-Q100 | CANbus FlexIO I2C I3C LINbus SPI UART/USART | 100-MaxQFP (10x10) | |||||||
Freescale Semiconductor - NXP | Surface Mount | 2 MB | 100-QFP | 5.5 V | 2.97 V | ARM® Cortex®-M7 | Automotive | 128 K | 12 | 24 | 192 K | 32-Bit | DMA I2S WDT | -40 °C | 125 °C | FLASH | 120 MHz | External Internal | AEC-Q100 | CANbus FlexIO I2C I3C LINbus SPI UART/USART | 100-MaxQFP (10x10) | ||||||||
 Freescale Semiconductor - NXP | Surface Mount | 2 MB | 172-QFP | 5.5 V | 2.7 V | ARM® Cortex®-M7 | Automotive | 24 | 192 K | 32-Bit | 143 | -40 °C | 125 °C | FLASH | 120 MHz | Internal | AEC-Q100 | CANbus FlexIO I2C LINbus SPI UART/USART | 172-QFP (16x16) | 12 | |||||||||
Freescale Semiconductor - NXP | Surface Mount | 2 MB | 100-QFP | 5.5 V | 2.97 V | ARM® Cortex®-M7 | Automotive | 128 K | 12 | 24 | 192 K | 32-Bit | DMA I2S WDT | -40 °C | 105 °C | FLASH | 120 MHz | External Internal | AEC-Q100 | CANbus FlexIO I2C I3C LINbus SPI UART/USART | 100-MaxQFP (10x10) | ||||||||
Freescale Semiconductor - NXP | Surface Mount | 2 MB | 100-QFP | 5.5 V | 2.97 V | ARM® Cortex®-M7 | Automotive | 128 K | 12 | 24 | 192 K | 32-Bit | DMA I2S WDT | -40 °C | 105 °C | FLASH | 120 MHz | External Internal | AEC-Q100 | CANbus FlexIO I2C I3C LINbus SPI UART/USART | 100-MaxQFP (10x10) | ||||||||
Freescale Semiconductor - NXP | Surface Mount | 2 MB | 100-QFP | 5.5 V | 2.97 V | ARM® Cortex®-M7 | Automotive | 128 K | 12 | 24 | 192 K | 32-Bit | DMA I2S WDT | -40 °C | 125 °C | FLASH | 120 MHz | External Internal | AEC-Q100 | CANbus FlexIO I2C I3C LINbus SPI UART/USART | 100-MaxQFP (10x10) | ||||||||
Freescale Semiconductor - NXP | Surface Mount | 2 MB | 172-QFP | 5.5 V | 2.97 V | ARM® Cortex®-M7 | Automotive | 128 K | 12 | 24 | 192 K | 32-Bit | 143 | -40 °C | 105 ░C | FLASH | 120 MHz | External Internal | AEC-Q100 | CANbus FlexIO I2C I3C LINbus SPI UART/USART | 172-QFP (16x16) | ||||||||

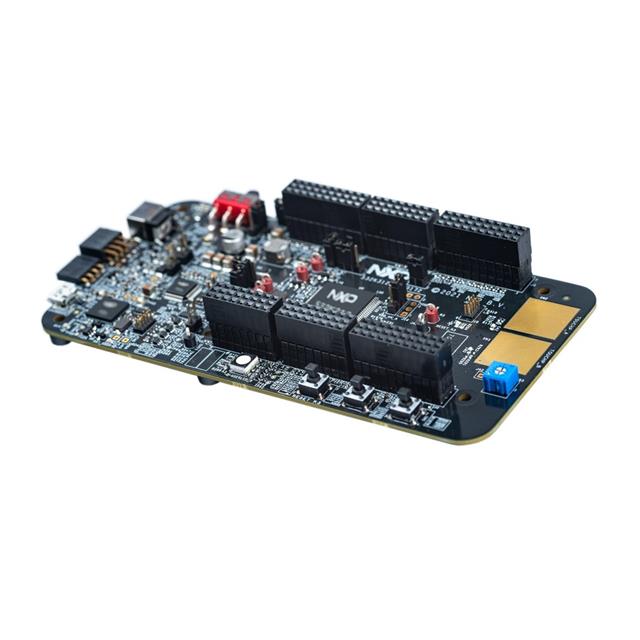

 Freescale Semiconductor - NXP | Fixed | ARM® Cortex®-M7 | Arduino R3 Shield | Board(s) | S32K312 | Evaluation Platform | MCU 32-Bit | S32 Design Studio |
