EBBA Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK, 6 POSITION
| Part | Clamp Material - Plating [custom] | Clamp Material - Plating [custom] | Screw Thread | Torque - Screw | Torque - Screw | Screw Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Housing Material | Wire Gauge [Min] | Wire Gauge [Max] | Number of Levels | Wire Termination | Current | Mating Orientation | Pitch | Pitch | Color | Features | Mounting Type | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

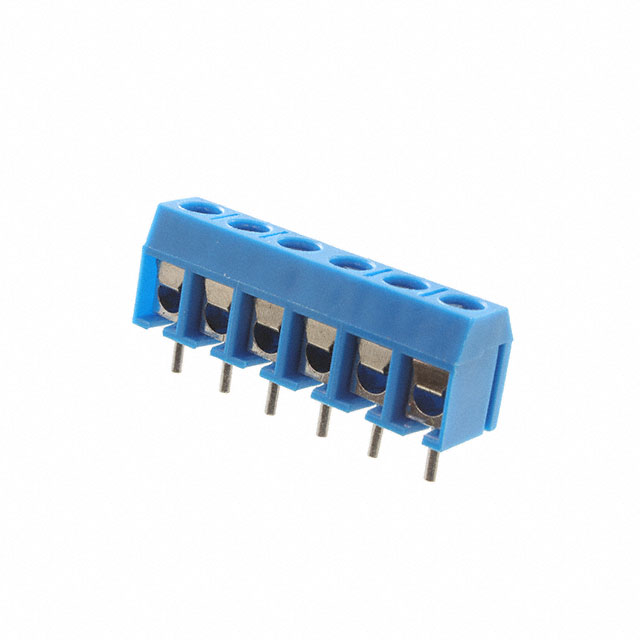

 Adam Tech | Phosphor Bronze | Nickel Plated | M2.5 | 3.5 Lb-In | 0.4 Nm | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | Polybutylene Terephthalate (PBT) | 14 AWG | 22 AWG | 1 | Screw - Leaf Spring Wire Guard | 16 A | Horizontal with Board | 0.197 in | 5 mm | Blue | Interlocking (Side) | Through Hole | 6 |

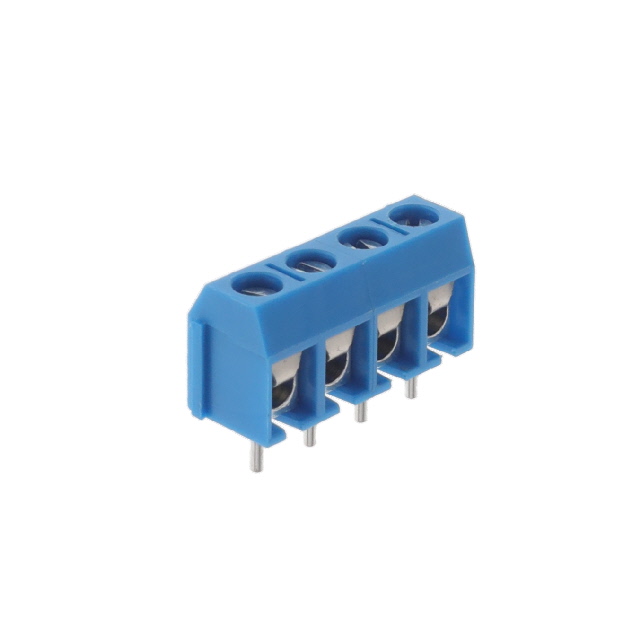

 Adam Tech | Phosphor Bronze | Nickel Plated | M2.5 | 3.5 Lb-In | 0.4 Nm | Steel - Zinc Plated | -40 C | 105 ░C | Brass - Tin Plated | Polybutylene Terephthalate (PBT) | 14 AWG | 22 AWG | 1 | Screw - Leaf Spring Wire Guard | 16 A | Horizontal with Board | 0.197 in | 5 mm | Blue | Interlocking (Side) | Through Hole | 4 |
