Ts0 Series Series

Tiny Slide Switch Headers & Wire Housings .100" Single Row Screw Machine Terminal Strip

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tiny Slide Switch Headers & Wire Housings .100" Single Row Screw Machine Terminal Strip

Part	Contact Material	Contact Timing	Features	Actuator Material	Electrical Life	Actuator Type	Circuit	Termination Style	Actuator Length [x]	Mounting Type	Switch Travel	Voltage Rating - DC	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Contact Finish	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products TS03CQE	Silver (Ag)	Not Specified	Epoxy Sealed Terminals	Nylon Polyamide (PA)	30000 Cycles	Standard	SPDT	PC Pin	3.1 mm	Through Hole	3.05 mm	28 V	On-Off-On	-30 ░C	85 °C	120 V	Silver
Littelfuse/Commercial Vehicle Products TS01CSE	Silver (Ag)	Not Specified	Epoxy Sealed Terminals	Nylon Polyamide (PA)	60000 Cycles	Standard	SPDT	PC Pin	3.1 mm	Through Hole	3.05 mm	28 V	On-On	-30 ░C	85 °C	120 V	Silver	3 A
Littelfuse/Commercial Vehicle Products TS02CPE	Copper Alloy	Not Specified		Nylon Polyamide (PA)	30000 Cycles	Standard	SPST	PC Pin	3.1 mm	Through Hole	3.05 mm	20 V	On-Off	-30 ░C	85 °C	20 V	Gold	0.4 VA

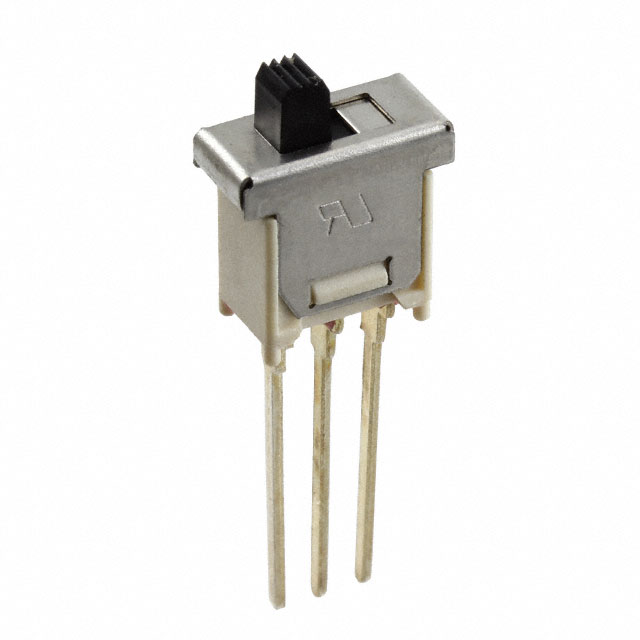

Littelfuse/Commercial Vehicle Products TS01WQE	Silver (Ag)	Not Specified	Epoxy Sealed Terminals	Nylon Polyamide (PA)	60000 Cycles	Standard	SPDT	Wire Wrap	3.1 mm	Through Hole	3.05 mm	28 V	On-On	-30 ░C	85 °C	120 V	Silver	3 A
Littelfuse/Commercial Vehicle Products TS01WBE	Copper Alloy	Not Specified	Epoxy Sealed Terminals	Nylon Polyamide (PA)	60000 Cycles	Standard	SPDT	Wire Wrap	3.1 mm	Through Hole	3.05 mm	20 V	On-On	-30 ░C	85 °C	20 V	Gold	0.4 VA
Littelfuse/Commercial Vehicle Products TS03AQE	Silver (Ag)	Not Specified	Epoxy Sealed Terminals	Nylon Polyamide (PA)	30000 Cycles	Standard	SPDT	PC Pin	3.1 mm	Through Hole Right Angle	3.05 mm	28 V	On-Off-On	-30 ░C	85 °C	120 V	Silver
Littelfuse/Commercial Vehicle Products TS03APE	Copper Alloy	Not Specified	Epoxy Sealed Terminals	Nylon Polyamide (PA)	30000 Cycles	Standard	SPDT	PC Pin	3.1 mm	Through Hole Right Angle	3.05 mm	20 V	On-Off-On	-30 ░C	85 °C	20 V	Gold	0.4 VA
Littelfuse/Commercial Vehicle Products TS02WBE	Copper Alloy	Not Specified	Epoxy Sealed Terminals	Nylon Polyamide (PA)	30000 Cycles	Standard	SPST	Wire Wrap	3.1 mm	Through Hole	3.05 mm	20 V	On-Off	-30 ░C	85 °C	20 V	Gold	0.4 VA
Littelfuse/Commercial Vehicle Products TS02CQE	Silver (Ag)	Not Specified	Epoxy Sealed Terminals	Nylon Polyamide (PA)	30000 Cycles	Standard	SPST	PC Pin	3.1 mm	Through Hole	3.05 mm	28 V	On-Off	-30 ░C	85 °C	120 V	Silver
Littelfuse/Commercial Vehicle Products TS01CRE	Silver (Ag)	Not Specified		Nylon Polyamide (PA)	60000 Cycles	Standard	SPDT	PC Pin	3.1 mm	Through Hole	3.05 mm	28 V	On-On	-30 ░C	85 °C	120 V	Gold	3 A

Catalog

Tiny Slide Switch Headers & Wire Housings .100" Single Row Screw Machine Terminal Strip

Key Features

• Reliable contact design ensures long electrical life

• Ratings up to 3 A

• Epoxy terminal-seal compatible with bottom wash cleaning

Description

The TS series tiny slide switches from C&K feature reliable contact design, which ensures a long electrical life. With ratings up to 3 A, the TS series are epoxy terminal-seal compatible with bottom wash cleaning capabilities. TS switches are found in test & measurement equipment, computers & peripherals and telecommunications & networking equipment.
