AFC2848 Series
Manufacturer: Delta Electronics
Beta
⌘K

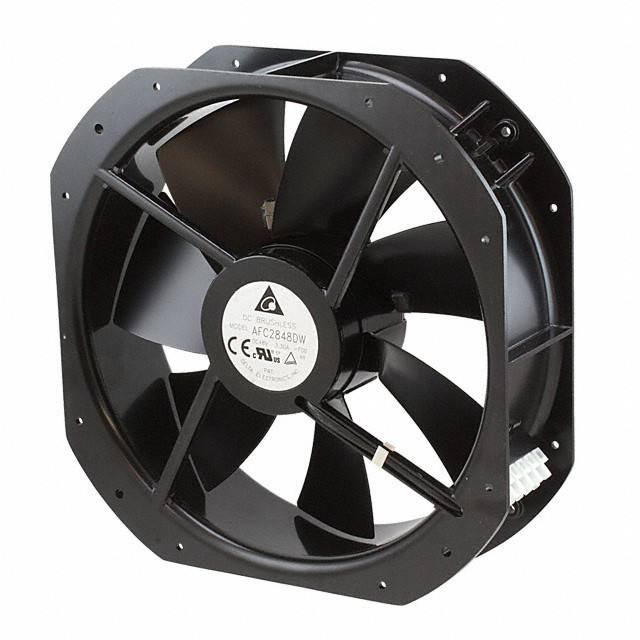

FAN AXIAL 280X80MM 48VDC WIRE
| Part | Material - Frame | Current Rating (Amps) | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Termination | RPM | Static Pressure | Static Pressure | Weight | Weight | Bearing Type | Air Flow | Air Flow | Size / Dimension [y] | Size / Dimension [x] | Features | Fan Type | Noise | Voltage - Rated | Power (Watts) | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Aluminum | 2.2 A | Metal | 36 VDC | 57 VDC | 70000 Hrs | -10 °C | 60 °C | 80 mm | 4 Wire Leads | 2750 RPM | 242.1 Pa | 0.972 in H2O | 5.5 lbs | 2.5 kg | Ball | 33.59 m³/min | 1199.6 CFM | 280 mm | 280 mm | Locked Rotor Protection PWM Control Speed Sensor (Tach) | Tubeaxial | 70 dB(A) | 48 VDC | 105.6 W | CE TUV UL |
