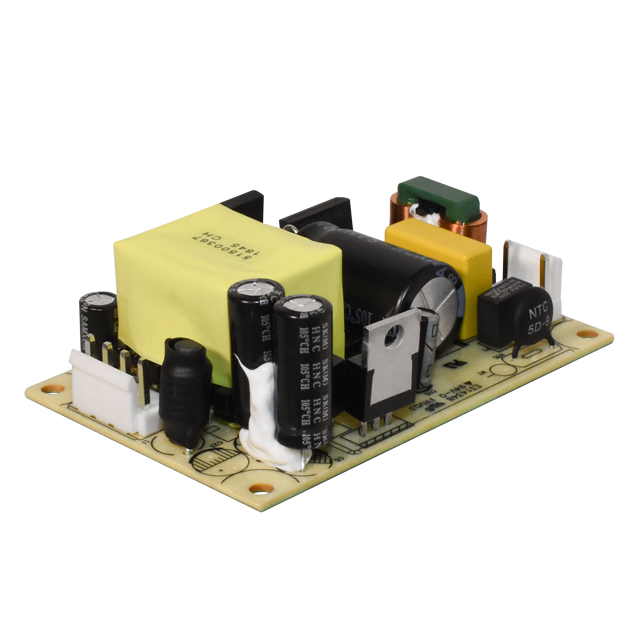

VOF-40C Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC CONVERTER 48V 40W
| Part | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output 1 | Voltage - Isolation | Number of Outputs | Power (Watts) | Applications | Type | Voltage - Input [Min] | Voltage - Input [Max] | Features | Mounting Type | Standard Number | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | CB Scheme EN IEC UL | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 87 % | 70 °C | -25 °C | 833 mA | 3000 V | 1 | 40 W | ITE (Commercial) | Open Frame | 85 VAC 100 V | 264 VAC 370 VDC | Universal Input | Chassis Mount | 55024 55032 Class A 62368-1 | 48 V |
CUI Inc. | CB Scheme EN IEC UL | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 86 % | 70 °C | -25 °C | 2.667 A | 3000 V | 1 | 40 W | ITE (Commercial) | Open Frame | 85 VAC 100 V | 264 VAC 370 VDC | Universal Input | Chassis Mount | 55024 55032 Class A 62368-1 | 15 V |
CUI Inc. | CB Scheme EN IEC UL | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 84 % | 70 °C | -25 °C | 4.444 A | 3000 V | 1 | 40 W | ITE (Commercial) | Open Frame | 85 VAC 100 V | 264 VAC 370 VDC | Universal Input | Chassis Mount | 55024 55032 Class A 62368-1 | 9 V |
CUI Inc. | CB Scheme EN IEC UL | 50.8 mm | 1.18 in | 2 in | 3 " | 76.2 mm | 30 mm | 86 % | 70 °C | -25 °C | 1.667 A | 3000 V | 1 | 40 W | ITE (Commercial) | Open Frame | 85 VAC 100 V | 264 VAC 370 VDC | Universal Input | Chassis Mount | 55024 55032 Class A 62368-1 | 24 V |
