842-088 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 88POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Color	Number of Positions/Bay/Row	Termination	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions	Contact Finish	Flange Feature	Card Type	Contact Material	Pitch	Pitch	Contact Type	Number of Rows [custom]	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 842-088-541-208	2	Diallyl Phthalate (DAP)	Green	44	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Gold	4-40 Flush Mount Threaded Insert Top Opening	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual

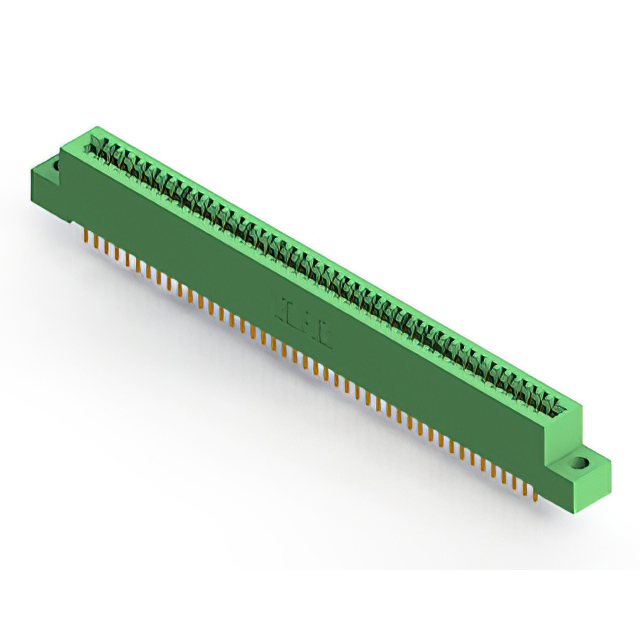

EDAC Inc. 842-088-521-204	2	Diallyl Phthalate (DAP)	Green	44	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Gold	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.156 "	3.96 mm

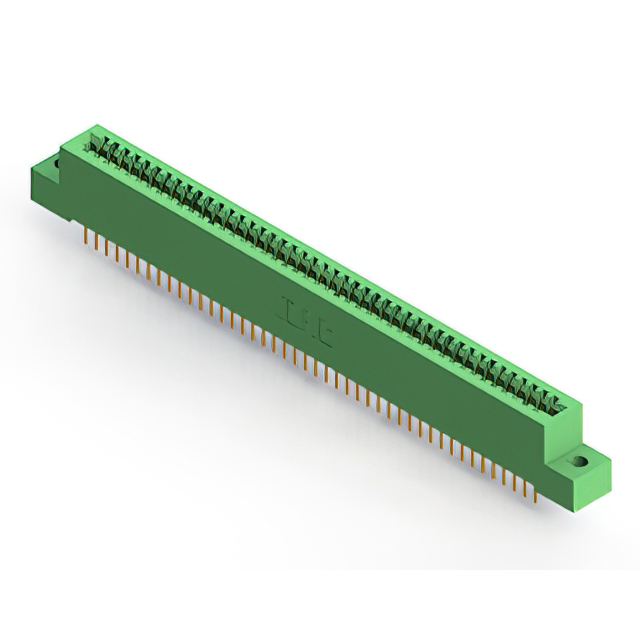

EDAC Inc. 842-088-524-202	2	Diallyl Phthalate (DAP)	Green	44	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Gold	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.128 "	3.25 mm

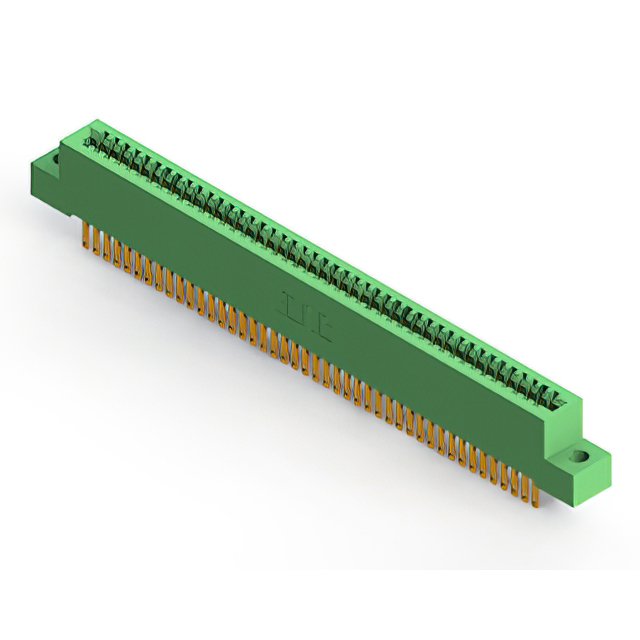

EDAC Inc. 842-088-500-204	2	Diallyl Phthalate (DAP)	Green	44	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Gold	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.156 "	3.96 mm
EDAC Inc. 842-088-540-203	2	Diallyl Phthalate (DAP)	Green	44	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Gold	Floating Bobbin Flush Mount	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.116 "	2.95 mm

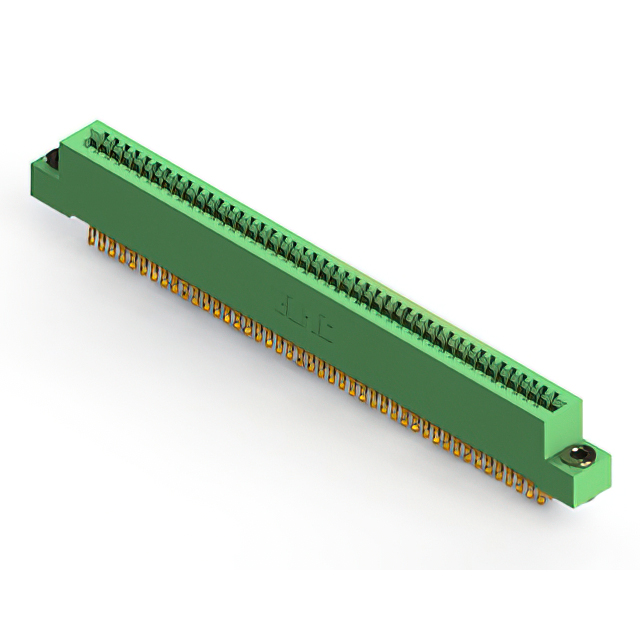

EDAC Inc. 842-088-555-203	2	Diallyl Phthalate (DAP)	Green	44	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	88	Gold	Floating Bobbin Flush Mount	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.116 "	2.95 mm	Card Extender

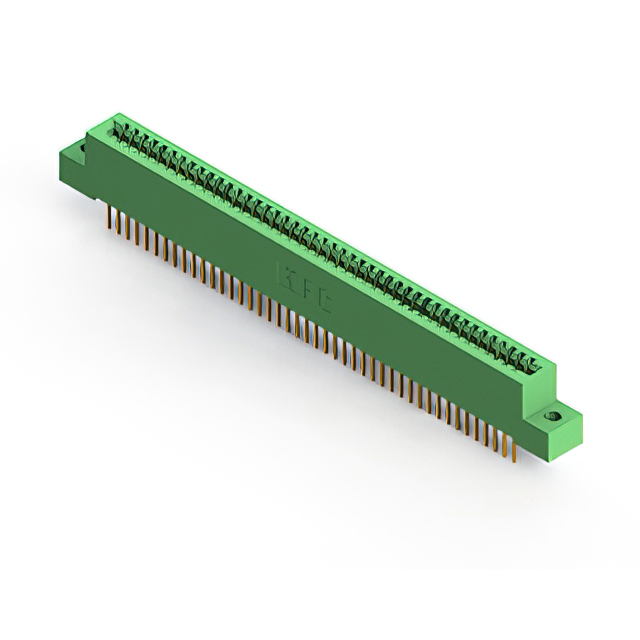

EDAC Inc. 842-088-541-202	2	Diallyl Phthalate (DAP)	Green	44	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Gold	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.128 "	3.25 mm
EDAC Inc. 842-088-555-204	2	Diallyl Phthalate (DAP)	Green	44	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	88	Gold	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.156 "	3.96 mm	Card Extender

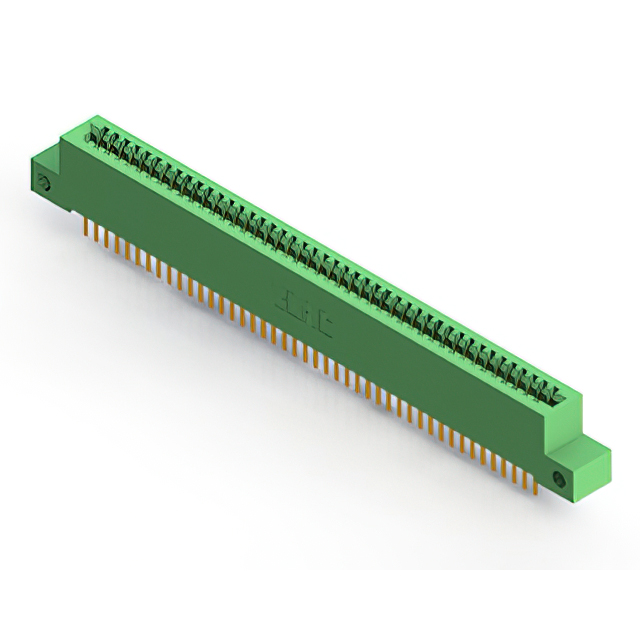

EDAC Inc. 842-088-520-212	2	Diallyl Phthalate (DAP)	Green	44	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Gold	Flush Mount Side Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.128 "	3.25 mm
EDAC Inc. 842-088-540-202	2	Diallyl Phthalate (DAP)	Green	44	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	88	Gold	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Copper Alloy	0.1 "	2.54 mm	Cantilever	2	Female	125 °C	-40 C	0.25 Ám	10 Áin	Dual	0.128 "	3.25 mm
