4034-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

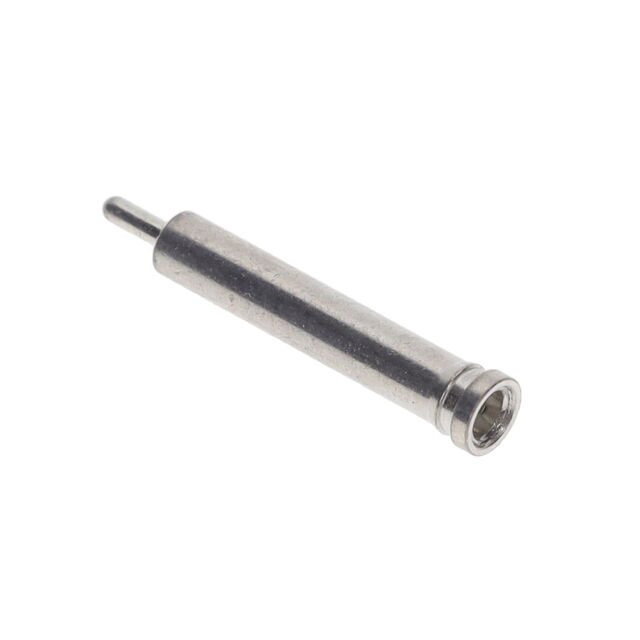

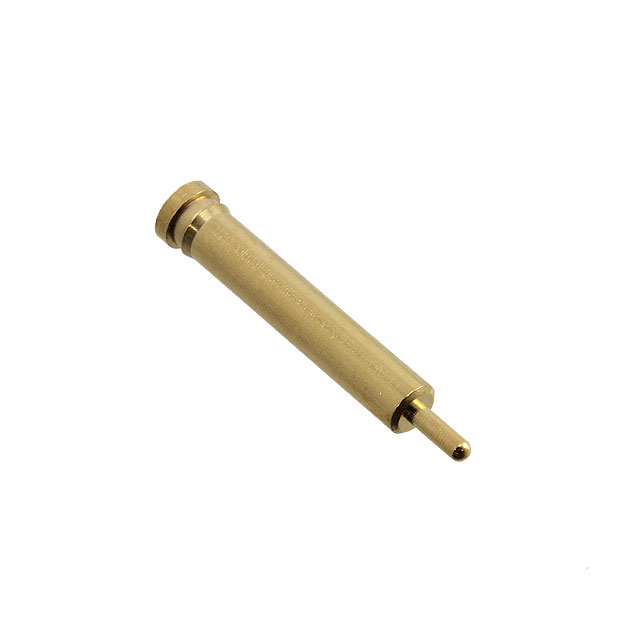

CONN RECEPT PIN .045-.065" .125"
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Contact Finish Thickness | Contact Finish Thickness | Tail Diameter [diameter] | Tail Diameter [diameter] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Accepts Pin Diameter [Min] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Max] [diameter] | Accepts Pin Diameter [Min] [diameter] | Socket Depth [z] | Socket Depth [z] | Length - Overall [x] | Length - Overall [x] | Contact Material | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Tin-Lead | 0.123 in | 3.12 mm | 2.77 mm | 0.109 in | Press-Fit | 200 Áin | 5.08 Ám | 1.02 mm | 0.04 " | 2.24 mm | 0.088 " | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | 0.375 " | 9.53 mm | 0.725 in | 18.42 mm | Beryllium Copper | Standard Tail |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.123 in | 3.12 mm | 2.77 mm | 0.109 in | Press-Fit | 10 Áin | 0.25 Ám | 1.02 mm | 0.04 " | 2.24 mm | 0.088 " | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | 0.375 " | 9.53 mm | 0.725 in | 18.42 mm | Beryllium Copper | Standard Tail |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.123 in | 3.12 mm | 2.77 mm | 0.109 in | Press-Fit | 30 Áin | 0.76 Ám | 1.02 mm | 0.04 " | 2.24 mm | 0.088 " | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | 0.375 " | 9.53 mm | 0.725 in | 18.42 mm | Beryllium Copper | Standard Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Tin | 0.123 in | 3.12 mm | 2.77 mm | 0.109 in | Press-Fit | 200 Áin | 5.08 Ám | 1.02 mm | 0.04 " | 2.24 mm | 0.088 " | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | 0.375 " | 9.53 mm | 0.725 in | 18.42 mm | Beryllium Copper | Standard Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.123 in | 3.12 mm | 2.77 mm | 0.109 in | Press-Fit | 30 Áin | 0.76 Ám | 1.02 mm | 0.04 " | 2.24 mm | 0.088 " | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | 0.375 " | 9.53 mm | 0.725 in | 18.42 mm | Beryllium Copper | Standard Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | Gold | 0.123 in | 3.12 mm | 2.77 mm | 0.109 in | Press-Fit | 10 Áin | 0.25 Ám | 1.02 mm | 0.04 " | 2.24 mm | 0.088 " | 0.045 " | 1.65 mm | 0.065 " | 1.14 mm | 0.375 " | 9.53 mm | 0.725 in | 18.42 mm | Beryllium Copper | Standard Tail |
