0933-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

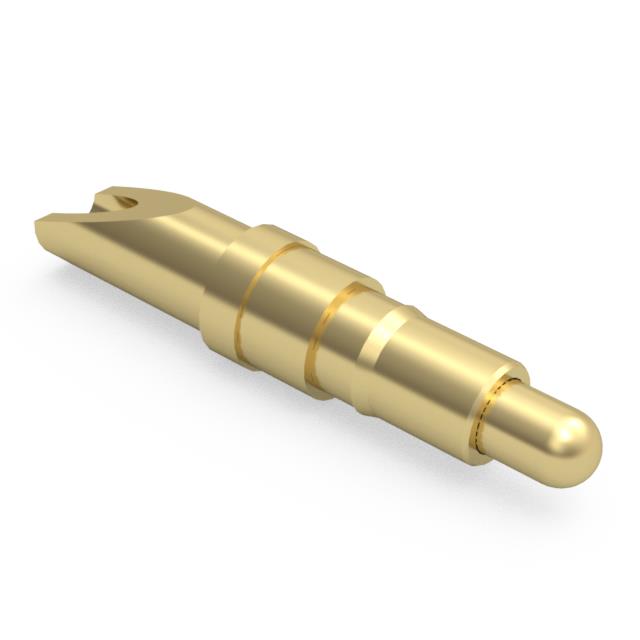

SPRING-LOADED PIN WITH SOLDER CU
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force - Initial | Features | Minimum Working Height | Minimum Working Height | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Mid Compression | Recommended Working Height [z] | Recommended Working Height | Current Rating (Amps) | Mating Cycles | Contact Finish | Contact Type | Mounting Type | Maximum Working Height [Max] [x] | Maximum Working Height [Max] [x] | Contact Material | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Plunger Size [diameter] | Plunger Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 10 gf | 24 AWG | 0.171 in | 4.34 mm | 20 µin | 0.51 µm | 60 gf | 0.198 in | 5.04 mm | 5.2 A | 1000000 | Gold | Sleeve & Plunger (Pogo Pins) | Solder Cup Through Hole | 5.74 mm | 0.226 in | Brass Alloy | 0.078 in | 1.98 mm | 0.042 in | 1.07 mm |
