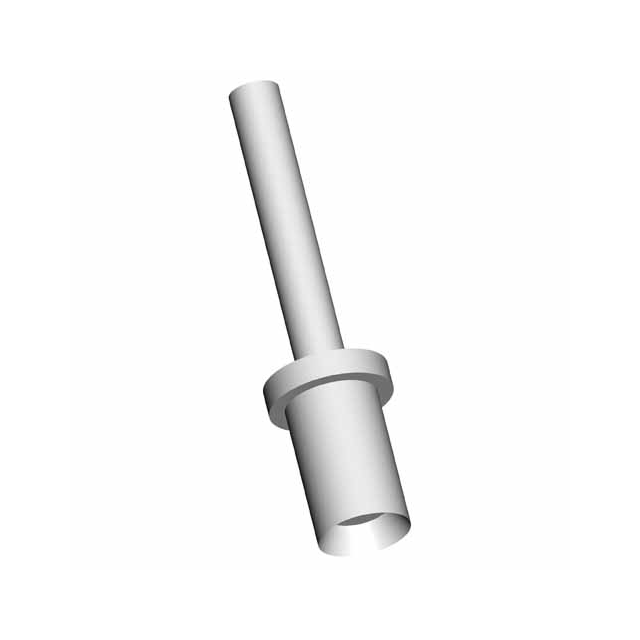

H2102 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 1.87 MM, TIN, 9.77 MM, 6.35 MM
| Part | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Length - Overall [x] | Length - Overall [x] | Termination | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Board Thickness [custom] | Board Thickness [custom] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Terminal Style | Insulation | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Length - Overall | Length - Overall | Length - Above Flange | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Brass | 0.094 " | 2.39 mm | 0.038 in | 0.97 mm | Through Hole | 9.78 mm | 0.385 in | Swage | Tin | 9.26 mm | 0.365 " | PC Pin | 0.094 in | 2.39 mm | 1.87 mm | 0.074 " | 0.07 in | 1.78 mm | Single End | Non-Insulated | |||||||
 Harwin Inc. | Brass | 0.094 " | 2.39 mm | Through Hole | Swage | Tin | 2.92 mm | 0.115 " | PC Pin | 0.094 in | 2.39 mm | 1.87 mm | 0.074 " | 0.07 in | 1.78 mm | Single End | Non-Insulated | 0.97 mm | 0.038 in | 0.372 in | 9.45 mm | 6.02 mm | 0.237 in | |||||
 Harwin Inc. | Brass | 0.094 " | 2.39 mm | Through Hole | 14.3 mm | 0.563 in | Swage | Tin | 8.23 mm | 0.324 " | PC Pin | 0.094 in | 2.39 mm | 1.87 mm | 0.074 " | 0.07 in | 1.78 mm | Double End | Non-Insulated | 0.219 in | 5.56 mm |
