PH-MVF-53 Series
Manufacturer: Adam Tech
Beta
⌘K
CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Current Rating (Amps) | Minimum Working Height [Min] | Minimum Working Height [Min] | Contact Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Maximum Working Height [Max] | Maximum Working Height [Max] | Mating Cycles | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Contact Finish | Plunger Size [diameter] | Plunger Size [diameter] | Contact Material | Minimum Working Height | Minimum Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

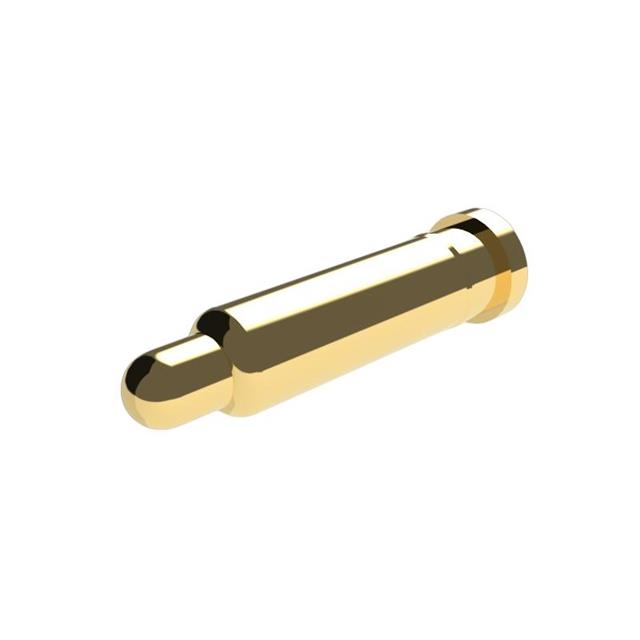

 Adam Tech | -55 C | 125 °C | Surface Mount | 3 A | 0.201 in | 5.1 mm | Sleeve & Plunger (Pogo Pins) | 0.071 in | 1.8 mm | 6.5 mm | 0.256 in | 1000000 | 70 gf | 0.217 in | 5.5 mm | Gold | 1 mm | 0.039 in | Brass | ||

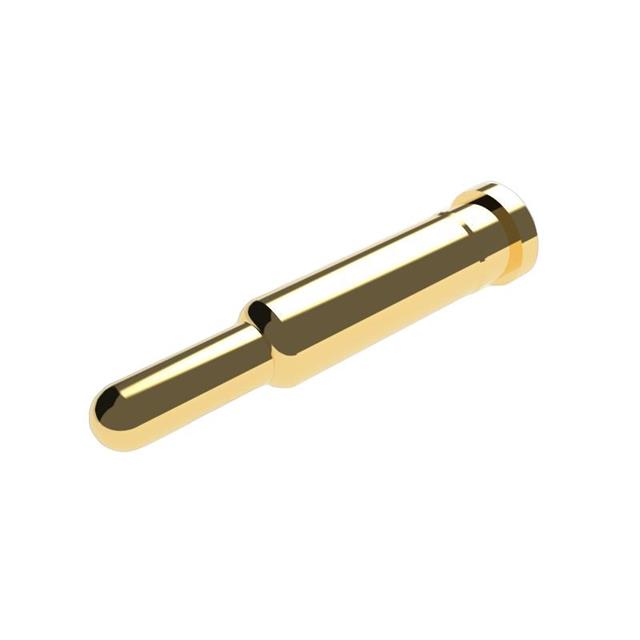

 Adam Tech | -55 C | 125 °C | Surface Mount | 3 A | Sleeve & Plunger (Pogo Pins) | 0.071 in | 1.8 mm | 8 mm | 0.315 in | 1000000 | 70 gf | 0.276 in | 7 mm | Gold | 1 mm | 0.039 in | Brass | 0.26 in | 6.6 mm |
