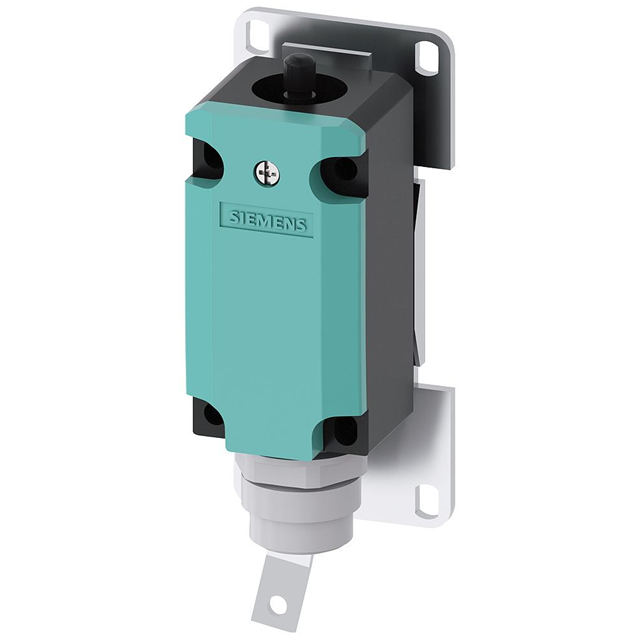

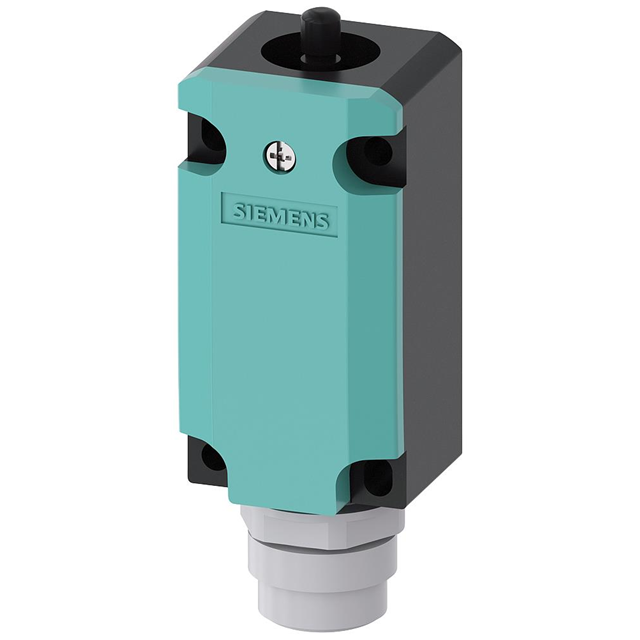

3SE5115 Series
Manufacturer: Siemens
Beta
⌘K
SWITCH LIMIT 3PST 6A 125V
| Part | Switch Function | Circuit | Mounting Type | Actuator Type | Current Rating (Amps) | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Ingress Protection | Voltage Rating - AC | Operating Force | Termination Style | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | Off-Mom On-Mom | 3PST-2NC/1NO | Chassis Mount | Round (Pin Plunger) | 3 A 6 A | 24 V | 85 °C | -25 °C | 100000 Cycles | IP65 - Dust Tight Water Resistant | 125 V | 2039 gf | Screw Terminal | 15000000 Cycles |
 Siemens | Off-Mom On-Mom | DPST-NO/NC | Chassis Mount | Round (Pin Plunger) | 3 A 6 A | 24 V | 85 °C | -25 °C | 100000 Cycles | IP65 - Dust Tight Water Resistant | 125 V | 2039 gf | Screw Terminal | 15000000 Cycles |
Siemens | Off-Mom On-Mom | 3PST-2NC/1NO | Chassis Mount | Round (Pin Plunger) | 3 A 6 A | 24 V | 85 °C | -25 °C | 100000 Cycles | IP65 - Dust Tight Water Resistant | 125 V | 2039 gf | Screw Terminal | 15000000 Cycles |
