M2022S3 Series

Catalog

SWITCH TOGGLE DPDT 0.4VA 28V

Part	Electrical Life	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Length [x]	Current Rating (Amps)	Features	Voltage Rating - AC	Actuator Type	Bushing Thread	Illumination	Mounting Type	Circuit	Voltage Rating - DC	Termination Style	Panel Cutout Dimensions [diameter]	Bushing Thread
NKK Switches M2022S3A2G13	50000 Cycles	Brass Chrome Plated	85 °C	-30 ░C	On-On	6.5 mm	0.4 VA	Epoxy Sealed Terminals	28 V	Standard Round	Unthreaded	Non-Illuminated	Through Hole	DPDT	28 V	PC Pin	6.5 mm
NKK Switches M2022S3A2W40	25000 Steps	Brass Chrome Plated	85 °C	-30 ░C	On-On	8.28 mm	4 A 6 A	Epoxy Sealed Terminals	125 V	Standard Round	Unthreaded	Non-Illuminated	Right Angle Through Hole Vertical	DPDT	30 V	PC Pin	6.5 mm
NKK Switches M2022S3S1W03	25000 Steps	Brass Chrome Plated	85 °C	-30 ░C	On-On	6.5 mm	4 A 6 A	Epoxy Sealed Terminals	125 V	Standard Round	1/4-40	Non-Illuminated	Panel Mount	DPDT	30 V	PC Pin	6.5 mm

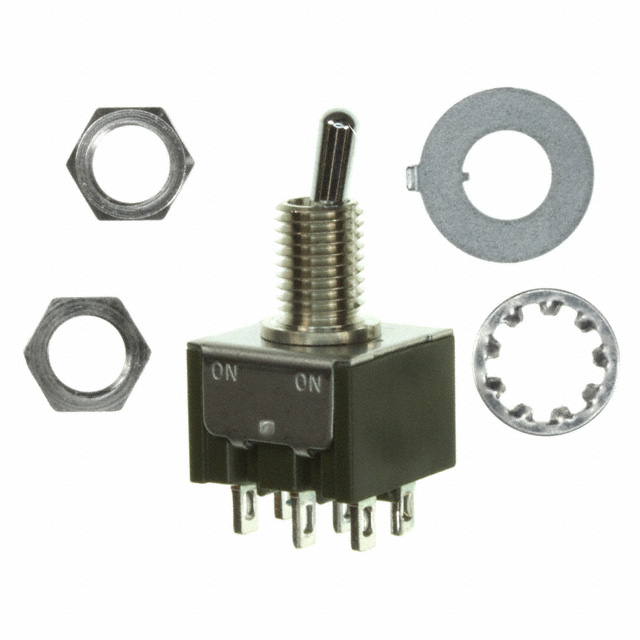

NKK Switches M2022S3S4W01	25000 Steps	Brass Chrome Plated	85 °C	-30 ░C	On-On	6.5 mm	4 A 6 A	Epoxy Sealed Terminals	125 V	Standard Round	M6	Non-Illuminated	Panel Mount	DPDT	30 V	Solder Lug	6.5 mm	0.75
NKK Switches M2022S3A1W03	25000 Steps	Brass Chrome Plated	85 °C	-30 ░C	On-On	8.28 mm	4 A 6 A	Epoxy Sealed Terminals	125 V	Standard Round	1/4-40	Non-Illuminated	Panel Mount	DPDT	30 V	PC Pin	6.5 mm
NKK Switches M2022S3S1W13	25000 Steps	Brass Chrome Plated	85 °C	-30 ░C	On-On	6.5 mm	4 A 6 A	Epoxy Sealed Terminals	125 V	Standard Round	1/4-40	Non-Illuminated	Through Hole	DPDT	30 V	PC Pin	6.5 mm
NKK Switches M2022S3S2W30	25000 Steps	Brass Chrome Plated	85 °C	-30 ░C	On-On	6.5 mm	4 A 6 A	Epoxy Sealed Terminals	125 V	Standard Round	Unthreaded	Non-Illuminated	Right Angle Through Hole	DPDT	30 V	PC Pin	6.5 mm
NKK Switches M2022S3S1W40	25000 Steps	Brass Chrome Plated	85 °C	-30 ░C	On-On	6.5 mm	4 A 6 A	Epoxy Sealed Terminals	125 V	Standard Round	1/4-40	Non-Illuminated	Panel Mount Right Angle Vertical	DPDT	30 V	PC Pin	6.5 mm

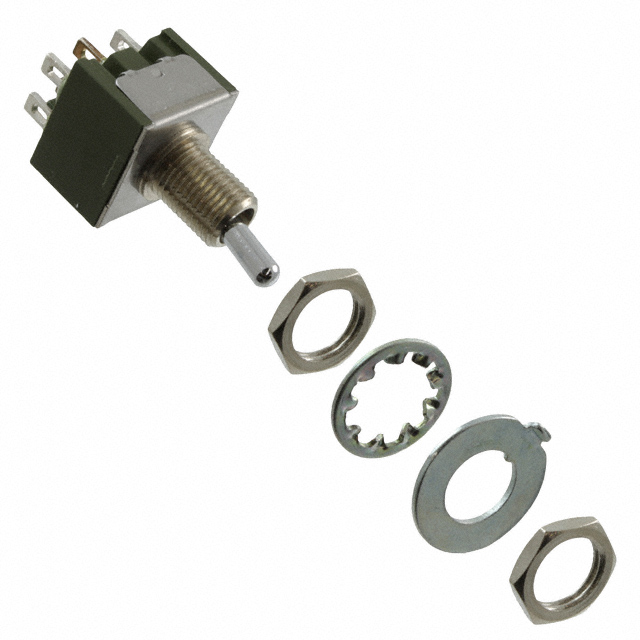

NKK Switches M2022S3S1W01	25000 Steps	Brass Chrome Plated	85 °C	-30 ░C	On-On	6.5 mm	4 A 6 A	Epoxy Sealed Terminals	125 V	Standard Round	1/4-40	Non-Illuminated	Panel Mount	DPDT	30 V	Solder Lug	6.5 mm
