ECC17 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

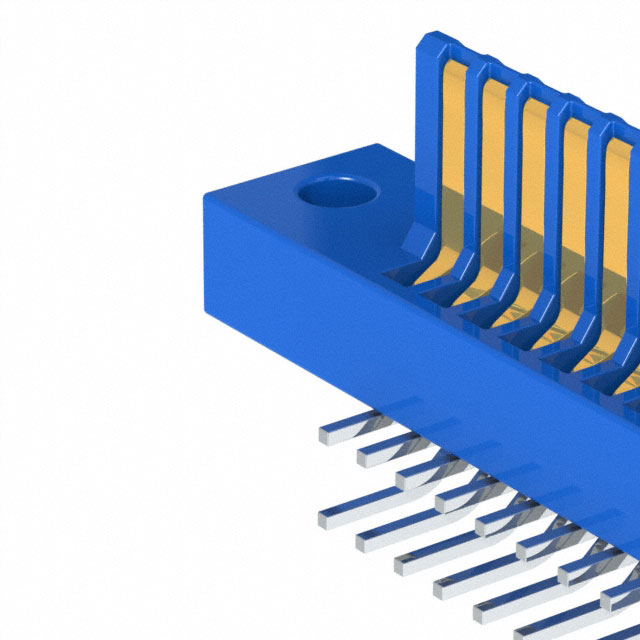

CONN EDGE DUAL FMALE 34POS 0.100
| Part | Material - Insulation | Number of Positions [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness | Card Thickness | Contact Finish | Contact Type | Number of Positions/Bay/Row [custom] | Pitch | Pitch | Card Type | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Mounting Type | Gender | Termination | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 1.57 mm | 0.062 in | Gold | Loop Bellows | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Through Hole | Female | Wire Wrap | Phosphor Bronze | |||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 1.57 mm | 0.062 in | Gold | Cantilever | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Right Angle Through Hole | Female | Solder | Phosphor Bronze | 4-40 Threaded Insert Top Mount Opening | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 1.57 mm | 0.062 in | Gold | Hairpin Bellows | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Right Angle Through Hole | Female | Solder | Phosphor Bronze | Side Mount Opening Unthreaded | 0.125 " | 3.18 mm | ||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 1.57 mm | 0.062 in | Gold | Cantilever | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Board Edge Straddle Mount | Female | Solder | Phosphor Bronze | 4-40 Threaded Insert Top Mount Opening | Card Extender | |||
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 1.57 mm | 0.062 in | Gold | 17 | 0.1 " | 2.54 mm | Fits Female Edgecards | Dual | 30 Áin | 0.76 Ám | 2 | Right Angle Through Hole | Male | Solder | Phosphor Bronze | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | |||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 2.36 mm | 0.093 " | Gold | Full Bellows | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Panel Mount | Female | Solder Eyelet(s) | Phosphor Bronze | 4-40 Threaded Insert Top Mount Opening | Blue | |||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 1.57 mm | 0.062 in | Gold | Hairpin Bellows | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Through Hole | Female | Solder | Phosphor Bronze | Blue | ||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 0.79 mm | 0.031 in | Gold | Full Bellows | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Right Angle Through Hole | Female | Solder | Phosphor Bronze | 0.125 " | 3.18 mm | Blue | ||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 1.57 mm | 0.062 in | Gold | Cantilever | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Right Angle Through Hole | Female | Solder | Phosphor Bronze | |||||
Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 34 | -65 ░C | 125 °C | 1.57 mm | 0.062 in | Gold | Hairpin Bellows | 17 | 0.1 " | 2.54 mm | Non Specified - Dual Edge | Dual | 30 Áin | 0.76 Ám | 2 | Right Angle Through Hole | Female | Solder | Phosphor Bronze | Flush Mount Top Opening Unthreaded | 0.125 " | 3.18 mm | Blue |
