PKE841 Series
Manufacturer: Flex Power Modules
Beta
⌘K

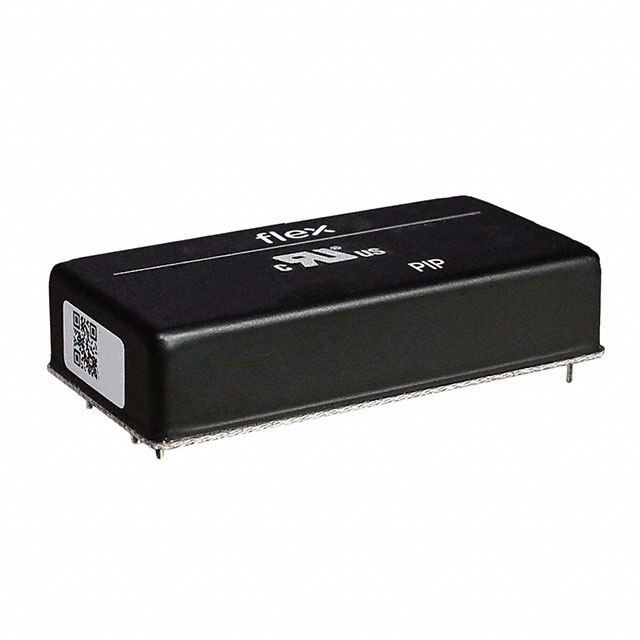

DC DC CONVERTER 5V 40W
| Part | Current - Output (Max) | Applications | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input (Max) | Power (Watts) | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Features | Efficiency | Control Features | Voltage - Isolation | Approval Agency | Package / Case | Mounting Type | Standard Number | Voltage - Output 1 | Voltage - Input (Min) | Number of Outputs | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 8 A | ITE (Commercial) | 115 °C | -40 °C | 75 V | 40 W | 2 in | 1 in | 0.47 in | Adjustable Output Remote On/Off | 88 % | Active Low Enable | 2.25 kV | CB CSA IEC TUV UL | 6-DIP Module | Through Hole | 62368-1 | 5 V | 9 V | 1 | Isolated Module |
Flex Power Modules | 2.7 A | ITE (Commercial) | 115 °C | -40 °C | 75 V | 41 W | 2 in | 1 in | 0.47 in | Adjustable Output Remote On/Off | 89 % | Active Low Enable | 2.25 kV | CB CSA IEC TUV UL | 6-DIP Module | Through Hole | 62368-1 | 15 V | 9 V | 1 | Isolated Module |
Flex Power Modules | 3.3 A | ITE (Commercial) | 115 °C | -40 °C | 75 V | 40 W | 2 in | 1 in | 0.47 in | Adjustable Output Remote On/Off | 91 % | Active Low Enable | 2.25 kV | CB CSA IEC TUV UL | 6-DIP Module | Through Hole | 62368-1 | 12 V | 9 V | 1 | Isolated Module |
Flex Power Modules | 9.1 A | ITE (Commercial) | 115 °C | -40 °C | 75 V | 30 W | 2 in | 1 in | 0.47 in | Adjustable Output Remote On/Off | 87 % | Active Low Enable | 2.25 kV | CB CSA IEC TUV UL | 6-DIP Module | Through Hole | 62368-1 | 3.3 V | 9 V | 1 | Isolated Module |
