LY2N-CR Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

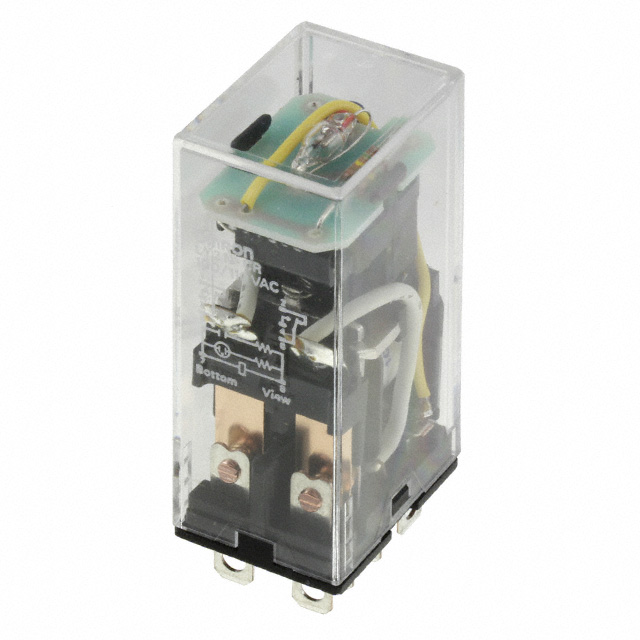

RELAY GEN PURPOSE DPDT 10A 120V
| Part | Approval Agency | Termination Style | Contact Material | Coil Type | Coil Current | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Operate Time | Contact Rating (Current) | Relay Type | Load - Max Switching | Features | Must Release Voltage | Coil Voltage | Release Time | Must Operate Voltage | Switching Voltage | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | CE CSA TUV UR | Plug In | Silver Alloy | Non Latching | 9.2 mA | DPDT (2 Form C) | 55 °C | -25 °C | Socketable | 25 ms | 10 A | General Purpose | 1250 W 2500 VA | Lighted Indicator RC Circuit | 36 VAC | 120 VAC | 25 ms | 96 VAC | 125 VDC 250 VAC | 4.43 kOhms |
Omron Electronics Inc-EMC Div | CE CSA TUV UR | Plug In | Silver Alloy | Non Latching | 4.6 mA | DPDT (2 Form C) | 55 °C | -25 °C | Socketable | 25 ms | 10 A | General Purpose | 1250 W 2500 VA | Lighted Indicator RC Circuit | 72 VAC/DC | 240 VAC | 25 ms | 192 VAC | 125 VDC 250 VAC | 18.79 kOhms |
Omron Electronics Inc-EMC Div | CE CSA TUV UR | Plug In | Silver Alloy | Non Latching | 46 mA | DPDT (2 Form C) | 55 °C | -25 °C | Socketable | 25 ms | 10 A | General Purpose | 1250 W 2500 VA | Lighted Indicator RC Circuit | 7.2 VAC | 24 VAC | 25 ms | 19.2 VAC | 125 VDC 250 VAC | 180 Ohms |
