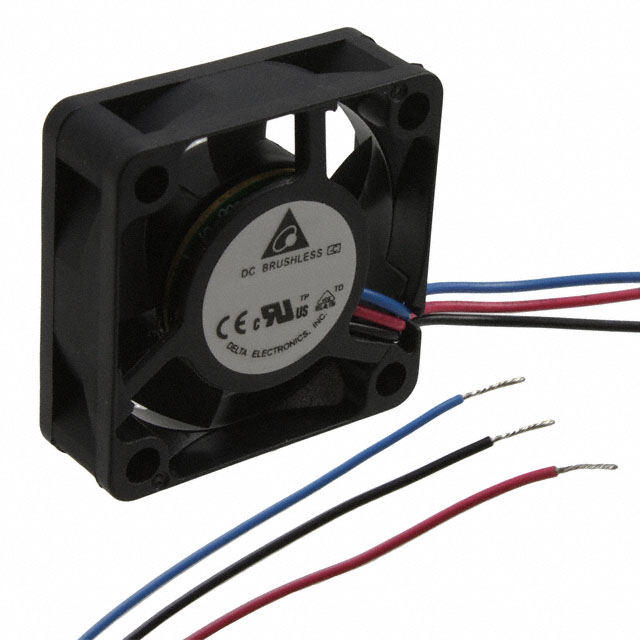

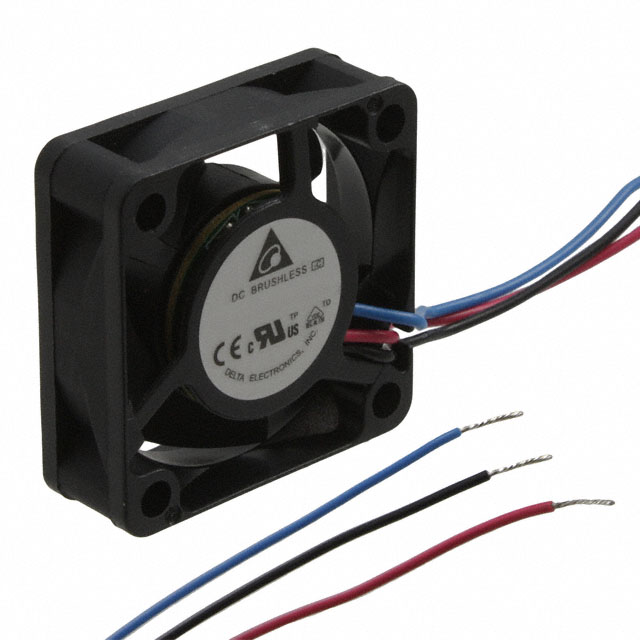

ASB0312 Series

Catalog

DC FAN AXIAL SLEEVE BEARING 12V 6V TO 13.8V 5.68CFM 30DB 30 X 30 X 10MM

Part	Material - Frame	Lifetime @ Temp.	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Termination	Fan Type	Weight	Weight	Voltage - Rated	RPM	Noise	Features	Static Pressure	Static Pressure	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Air Flow	Air Flow	Width [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Current Rating (Amps)	Approval Agency	Weight [diameter]	Weight [diameter]
Delta Electronics ASB0312HA-AF00	Plastic	30000 Hrs	Plastic	13.8 VDC	6 VDC	3 Wire Leads	Tubeaxial	9.07 g	0.02 lb	12 VDC	11000 RPM	30 dB	Locked Rotor Protection Speed Sensor (Tach)	54.8 Pa	0.22 in H2O	Sleeve	70 °C	-10 °C	4.3 CFM	0.12 m³/min	10 mm	30 mm	30 mm	960 mW
Delta Electronics ASB0312MA-DF00	Plastic	20000 Hrs	Plastic	13.8 VDC	7 V	3 Wire Leads	Tubeaxial			12 VDC	9000 RPM	23 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	41.6 Pa	0.167 in H2O	Sleeve	70 °C	-10 °C	3.7 CFM	0.104 m³/min	10 mm	30 mm	30 mm	720 mW	60 mA	cURus TUV	0.017 lb	7.71 g

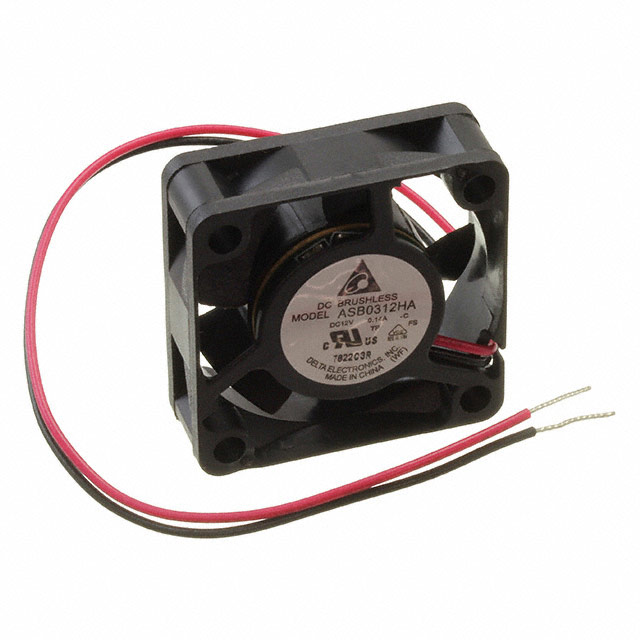

Delta Electronics ASB0312HA-C	Plastic	20000 Hrs	Plastic	13.8 VDC	7 V	2 Wire Leads	Tubeaxial			12 VDC	10500 RPM	27 dB(A)		53.3 Pa	0.214 in H2O	Sleeve	70 °C	-10 °C	4.3 CFM	0.12 m³/min	10 mm	30 mm	30 mm	840 mW	70 mA	CE cURus VDE	0.017 lb	7.71 g
Delta Electronics ASB0312LA-CF00	Plastic	20000 Hrs	Plastic	13.8 VDC	7 V	3 Wire Leads	Tubeaxial			12 VDC	8000 RPM	21 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	32.6 Pa	0.131 in H2O	Sleeve	70 °C	-10 °C	3.2 CFM	0.09 mł/min	10 mm	30 mm	30 mm	600 mW	50 mA	CE cURus VDE	0.017 lb	7.71 g
