UDA135 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC CODEC STER/SUDIO SPDIF 44QFP
| Part | Resolution (Bits) | Type | Package Length | Package Name | Package Width | Data Interface | Operating Temperature (Min) | Operating Temperature (Max) | Number of ADCs | Number of DACs | Sigma Delta | Package / Case | S/N Ratio (DACs) (Typical) | S/N Ratio (ADCs) (Typical) | Voltage - Supply, Digital (Min) | Voltage - Supply, Digital (Max) | Voltage - Supply, Analog (Min) | Voltage - Supply, Analog (Max) | Mounting Type | Sampling Rate (Per Second) | Number of Channels | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Voltage Supply Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | 24 b | Stereo Audio | 10 mm | 44-PQFP | 10 mm | I2C Serial | -40 °C | 85 °C | 2 count | 2 | No | 44-QFP | 98 dB | 97 dB | 2.7 V | 5.5 V | 2.7 V | 5.5 V | Surface Mount | |||||
 NXP USA Inc. | 24 b | Audio DAC | 10 mm | 44-PQFP | 10 mm | PCM | -40 °C | 85 °C | 44-QFP | Surface Mount | 100 kHz | 2 | 3.6 V | 2.7 V | Analog Digital | |||||||||

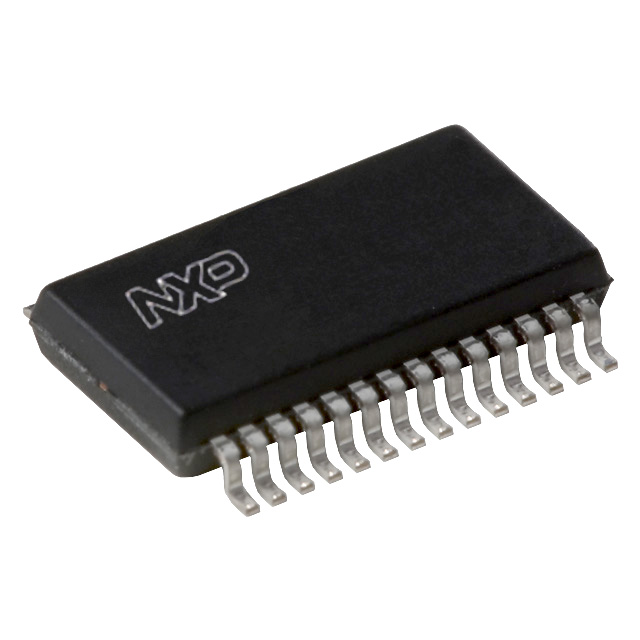

 NXP USA Inc. | 20 b | Audio DAC | 0.209 in | 28-SSOP | 5.3 mm | I2C | -40 °C | 85 °C | Surface Mount | 48 kHz | 3 | 3.6 V | 2.7 V | Analog Digital | ||||||||||
 NXP USA Inc. | 20 b | Audio DAC | 0.209 in | 28-SSOP | 5.3 mm | PCM | -40 °C | 85 °C | Surface Mount | 100 kHz | 2 | 3.6 V | 2.7 V | Analog Digital | ||||||||||
NXP USA Inc. | 20 b | Audio DAC | 0.209 in | 28-SSOP | 5.3 mm | PCM | -40 °C | 85 °C | Surface Mount | 100 kHz | 2 | 3.6 V | 2.7 V | Analog Digital | ||||||||||
NXP USA Inc. | 20 b | Audio DAC | 0.209 in | 28-SSOP | 5.3 mm | I2C | -40 °C | 85 °C | Surface Mount | 48 kHz | 3 | 3.6 V | 2.7 V | Analog Digital | ||||||||||
NXP USA Inc. | 24 b | Stereo Audio | 10 mm | 44-PQFP | 10 mm | I2C Serial | -40 °C | 85 °C | 2 count | 2 | No | 44-QFP | 98 dB | 97 dB | 2.7 V | 5.5 V | 2.7 V | 5.5 V | Surface Mount |
