696424 Series

Catalog

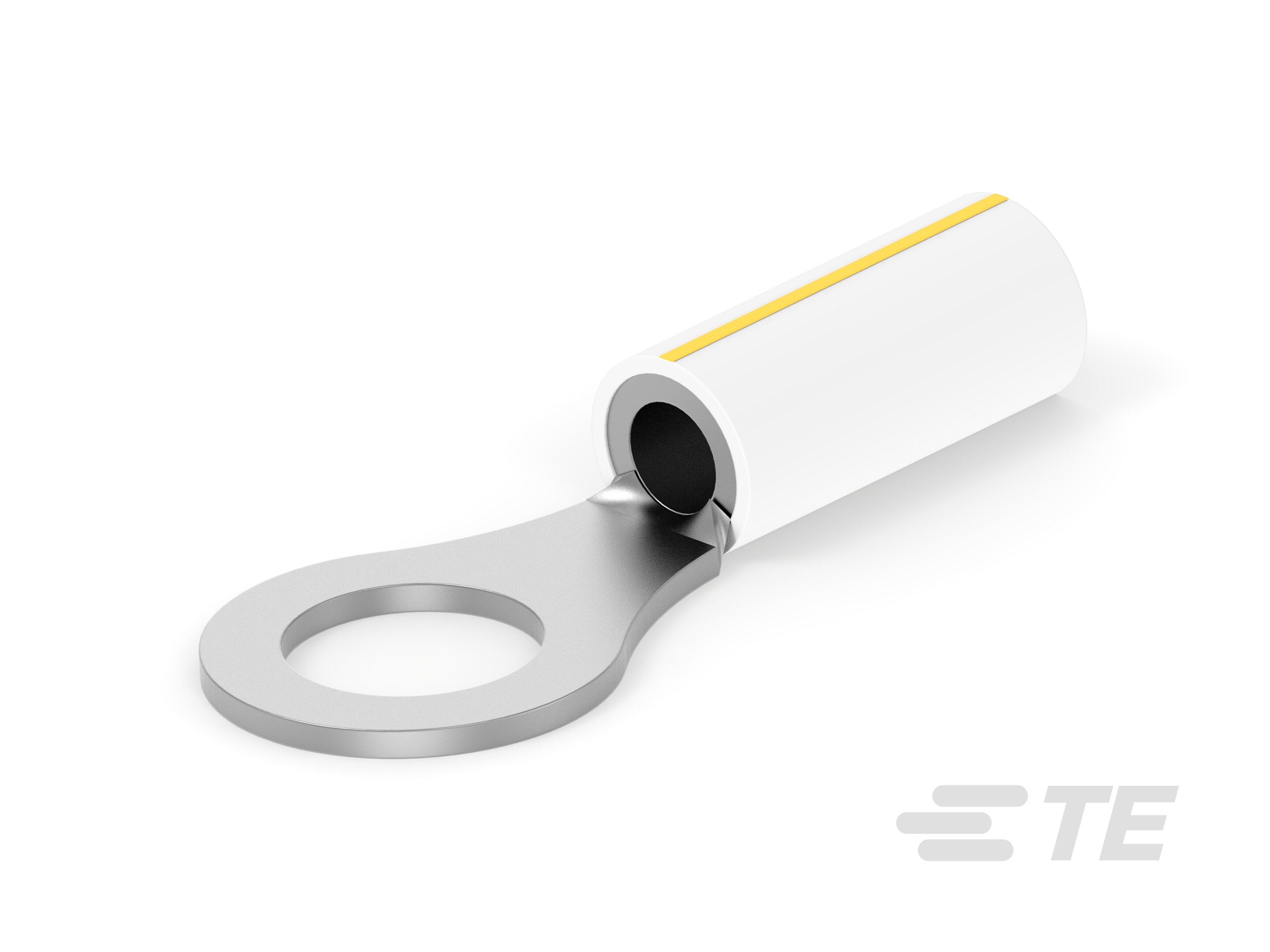

TERMINAL,PIDG PVF2 R 12-10 10

Part	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Material - Insulation	Stud/Tab Size	Termination	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Color	Contact Material	Contact Finish	Features	Mounting Type	Insulation	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Width - Outer Edges	Width - Outer Edges

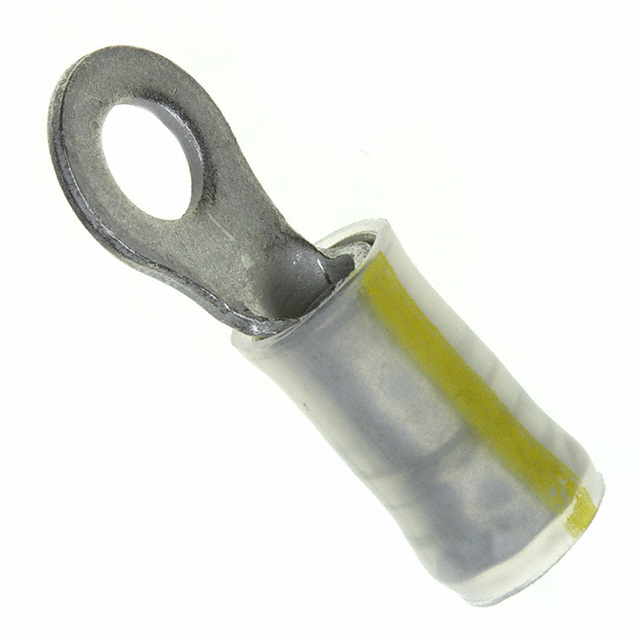

TE Connectivity AMP Connectors 696424-6	5.84 mm	3.81 mm	0.15 in	0.23 in	Polyvinylidene Fluoride (PVDF)	10 Stud	Crimp	0.039 in	0.99 mm	0.375 in	9.53 mm	Natural Yellow Stripe	Copper	Tin	Serrated Termination	Free Hanging (In-Line)	Insulated	27.64 mm	1.088 in	10 AWG	12 AWG	Circular
TE Connectivity AMP Connectors 696424-8	5.84 mm	3.81 mm	0.15 in	0.23 in	Polyvinylidene Fluoride (PVDF)	0.3125 Stud	Crimp	0.039 in	0.99 mm			Natural Yellow Stripe	Copper	Tin	Serrated Termination	Free Hanging (In-Line)	Insulated	33.71 mm	1.327 in	10 AWG	12 AWG	Circular	13.49 mm	0.531 in
TE Connectivity AMP Connectors 696424-7	5.84 mm	3.81 mm	0.15 in	0.23 in	Polyvinylidene Fluoride (PVDF)	0.25 Stud	Crimp	0.039 in	0.99 mm			Natural Yellow Stripe	Copper	Tin	Serrated Termination	Free Hanging (In-Line)	Insulated	33.71 mm	1.327 in	10 AWG	12 AWG	Circular	13.49 mm	0.531 in
