CFS-0602 Series

Catalog

SLIDE DIP SWITCH, HORIZONTAL, 0.1A, 50VDC, 16 PCB HOLE CNT, SOLDER TERMINAL, THROUGH HOLE-STRAIGHT,

Part	Current Rating (Amps)	Voltage Rating	Actuator Type	Height Above Board	Height Above Board	Contact Material	Mounting Type	Length	Length [x]	Actuator Level	Circuit	Termination Style	Number of Positions	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Pitch [x]	Pitch	Pitch [x]	Body Material

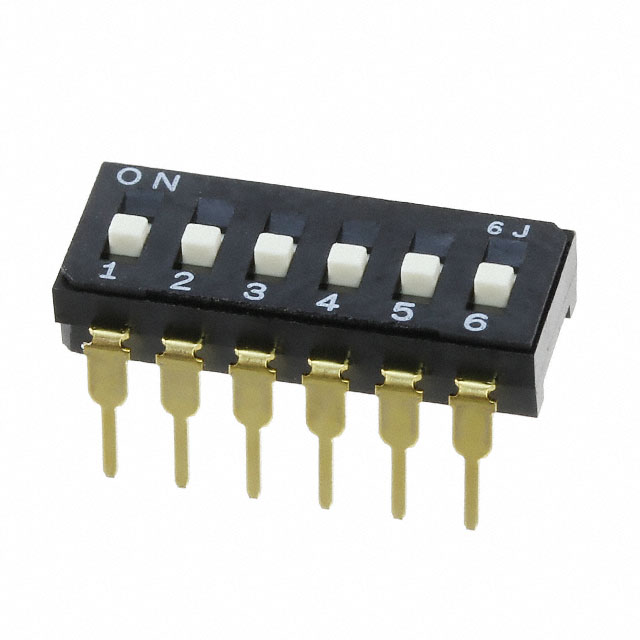

Nidec Components Corporation CFS-0602MC	100 mA	6 VDC	Slide (Standard)	0.201 in	5.1 mm	Copper Alloy	Through Hole	16.7 mm	0.657 in	Raised	SPST	PC Pin	6	1000 Cycles	85 °C	-40 °C	Gold	0.1 in	Full	2.54 mm	Polyphenylene Sulfide (PPS)
Nidec Components Corporation CFS-0602TA	100 mA	6 VDC	Slide (Standard)	0.177 in	4.5 mm	Copper Alloy	Surface Mount	16.7 mm	0.657 in	Raised	SPST	J Lead	6	1000 Cycles	85 °C	-40 °C	Gold	0.1 in	Full	2.54 mm	Polyphenylene Sulfide (PPS)

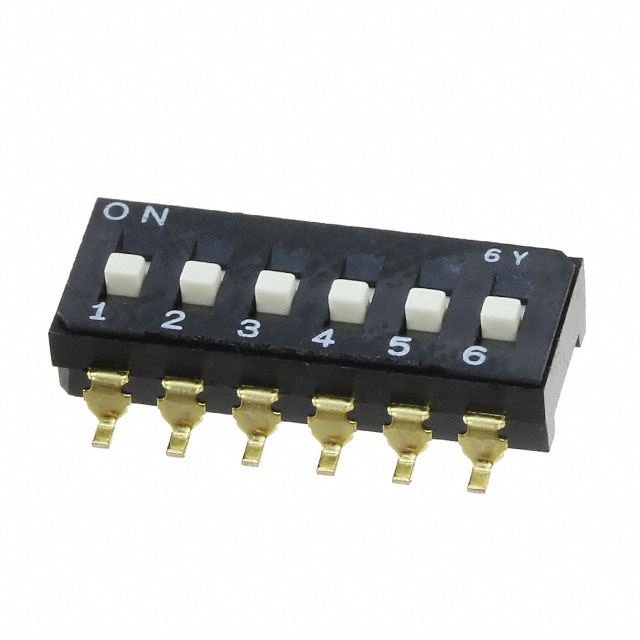

Nidec Components Corporation CFS-0602MB	100 mA	6 VDC	Slide (Standard)	0.169 in	4.3 mm	Copper Alloy	Surface Mount	16.7 mm	0.657 in	Raised	SPST	Gull Wing	6	1000 Cycles	85 °C	-40 °C	Gold	0.1 in	Full	2.54 mm	Polyphenylene Sulfide (PPS)
Nidec Components Corporation CFS-0602TB	100 mA	6 VDC	Slide (Standard)	0.169 in	4.3 mm	Copper Alloy	Surface Mount	16.7 mm	0.657 in	Raised	SPST	Gull Wing	6	1000 Cycles	85 °C	-40 °C	Gold	0.1 in	Full	2.54 mm	Polyphenylene Sulfide (PPS)
