MG Series
Isolated DC/DC Converters - Through Hole 15W 15V/30V 0.5A Through Hole
Manufacturer: Cosel USA, Inc.
Catalog
Isolated DC/DC Converters - Through Hole 15W 15V/30V 0.5A Through Hole
Beta
⌘K
Isolated DC/DC Converters - Through Hole 15W 15V/30V 0.5A Through Hole
Isolated DC/DC Converters - Through Hole 15W 15V/30V 0.5A Through Hole
Isolated DC/DC Converters - Through Hole 15W 15V/30V 0.5A Through Hole
| Part | Efficiency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Power (Watts) | Current - Output (Max) [Max] | Type | Voltage - Isolation | Voltage - Input (Max) [Max] | Applications | Voltage - Output 1 | Mounting Type | Voltage - Input (Min) [Min] | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Features | Voltage - Output 2 | Current - Output (Max) | Control Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 89 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 15 W | 1 A | Isolated Module | 1.5 kV | 36 V | ITE (Commercial) | 15 V | Through Hole | 18 V | 1 | -40 °C | 85 °C | |||||
 Cosel USA, Inc. | 92 % | 0.39 " | 9.9 mm | 2 in | 1 " | 25.4 mm | 50.8 mm | 6-DIP Module | 30 Watts | 2.5 A | Isolated Module | 1.5 kV | 76 V | ITE (Commercial) | 12 V | Through Hole | 36 V | 1 | -40 °C | 85 °C | |||||
 Cosel USA, Inc. | 90 % | 0.39 " | 9.9 mm | 2 in | 1 " | 25.4 mm | 50.8 mm | 6-DIP Module | 30 Watts | 6 A | Isolated Module | 1.5 kV | 36 V | ITE (Commercial) | 5 V | Through Hole | 9 V | 1 | -40 °C | 85 °C | |||||

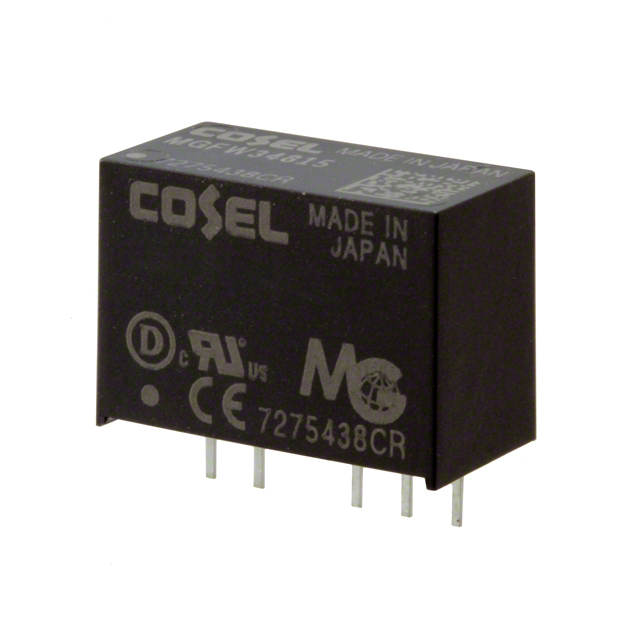

 Cosel USA, Inc. | 81 % | 0.47 " | 12 mm | 0.67 " | 0.33 " | 8.5 mm | 17 mm | 5-SIP Module | 1.6 W | 65 mA | Isolated Module | 1.5 kV | 36 V | ITE (Commercial) | 12 V | Through Hole | 9 V | 2 | -40 C | 85 °C | OCP | -12 V | |||
 Cosel USA, Inc. | 87 % | 0.47 " | 12 mm | 0.87 in | 0.37 in | 9.5 mm | 22 mm | 7-SIP Module | Isolated Module | 1.5 kV | 18 V | ITE (Commercial) | 12 V | Through Hole | 9 V | 2 | -40 C | 85 °C | OCP Remote On/Off | -12 V | 420 mA | ||||
Cosel USA, Inc. | 92 % | 0.39 " | 9.9 mm | 2 in | 1 " | 25.4 mm | 50.8 mm | 6-DIP Module | 30 Watts | 6 A | Isolated Module | 1.5 kV | 36 V | ITE (Commercial) | 5 V | Through Hole | 18 V | 1 | -40 °C | 85 °C | |||||
 Cosel USA, Inc. | 88 % | 0.47 " | 12 mm | 0.87 in | 0.37 in | 9.5 mm | 22 mm | 7-SIP Module | Isolated Module | 1.5 kV | 76 V | ITE (Commercial) | 12 V | Through Hole | 36 V | 2 | -40 C | 85 °C | OCP Remote On/Off | -12 V | 420 mA | ||||
 Cosel USA, Inc. | 87 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 3 A | Isolated Module | 1.5 kV | 18 V | ITE (Commercial) | 5 V | Through Hole | 9 V | 1 | -40 °C | 85 °C | OCP Remote On/Off | |||||
 Cosel USA, Inc. | 89 % | 0.47 " | 12 mm | 0.87 in | 0.37 in | 9.5 mm | 22 mm | 7-SIP Module | 500 mA | Isolated Module | 1.5 kV | 18 V | ITE (Commercial) | 12 V | Through Hole | 9 V | 1 | -40 °C | 85 °C | OCP Remote On/Off | |||||
 Cosel USA, Inc. | 91 % | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 40 W | 8 A | Isolated Module | 1.5 kV | 76 V | ITE (Commercial) | 5 V | Through Hole | 18 V | 1 | -40 °C | 85 °C | Active Low Enable | CE cURus DEMKO |
