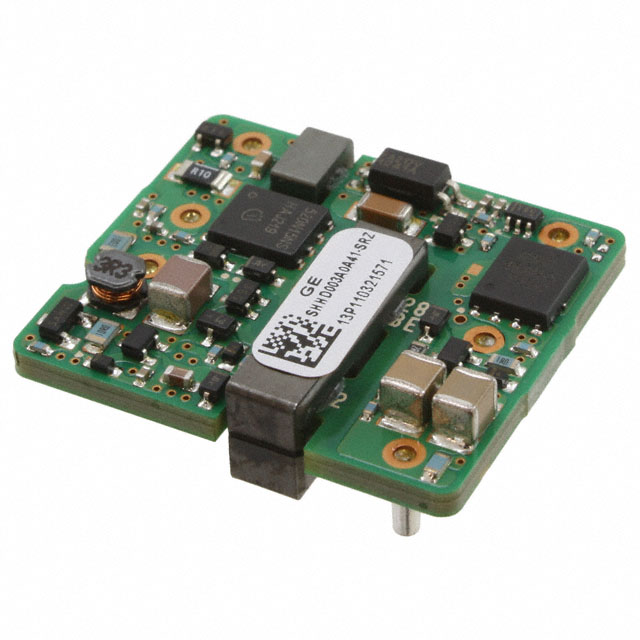

SHHN000 Series

Catalog

DC DC CONVERTER +/-15V 9W

Part	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Voltage - Output 1	Features	Applications	Type	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Power (Watts)	Voltage - Output 2	Efficiency

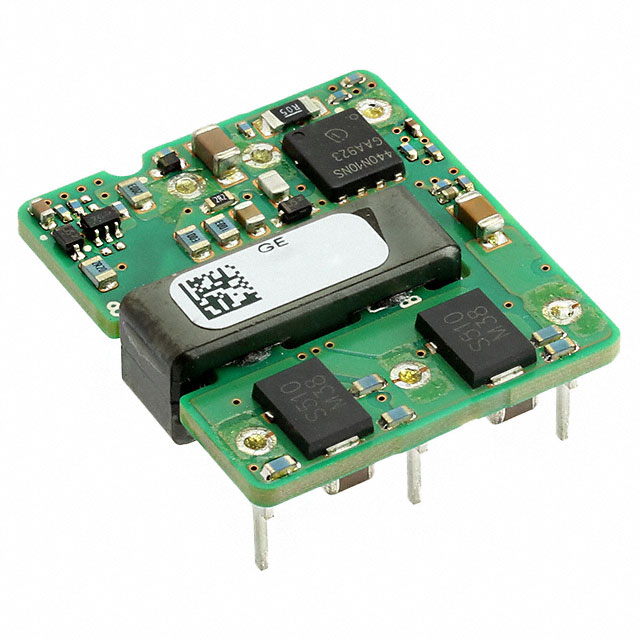

OmniOn Power™ SHHN000A3CL41Z	2	9 V	1.6 kV	0.3 A	6-DIP Module	0.96 in	24.4 mm	0.34 in	1.1 in	27.9 mm	8.5 mm	Through Hole	15 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Isolated Module	36 V	85 °C	-40 C	Active Low Enable	9 W	-15 V	84 %
OmniOn Power™ SHHN000A3CL41Z	2	9 V	1.6 kV	0.3 A	6-DIP Module	0.96 in	24.4 mm	0.34 in	1.1 in	27.9 mm	8.5 mm	Through Hole	15 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Isolated Module	36 V	85 °C	-40 C	Active Low Enable	9 W	-15 V	84 %
OmniOn Power™ SHHN000A3CL4-SRZ	2	9 V	1.6 kV	0.3 A	6-SMD Module	0.96 in	24.4 mm	0.34 in	1.1 in	27.9 mm	8.5 mm	Surface Mount	15 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Isolated Module	36 V	85 °C	-40 C	Active High Enable	9 W	-15 V	84 %
OmniOn Power™ SHHN000A3CL4-SRZ	2	9 V	1.6 kV	0.3 A	6-SMD Module	0.96 in	24.4 mm	0.34 in	1.1 in	27.9 mm	8.5 mm	Surface Mount	15 V	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	Isolated Module	36 V	85 °C	-40 C	Active High Enable	9 W	-15 V	84 %
