SM10B-NS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

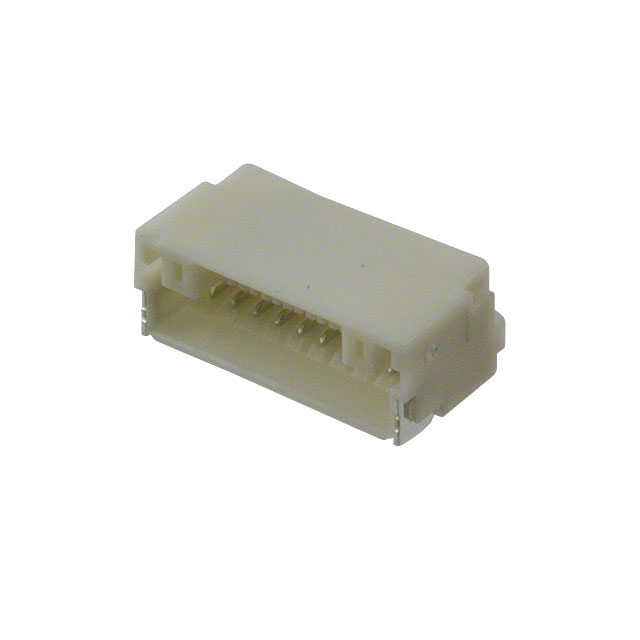

CONN HEADER SMD R/A 10POS 1MM
| Part | Insulation Color | Contact Finish - Post | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Material Flammability Rating | Termination | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Material | Shrouding | Contact Material | Contact Type | Mounting Type | Fastening Type | Insulation Height | Insulation Height | Connector Type | Number of Rows | Voltage Rating | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | Tin | Solder Retention | 85 °C | -25 °C | All | UL94 V-0 | Solder | 10 | 1 mm | 0.039 in | Nylon Polyamide (PA) | Shrouded - 4 Wall | Copper Alloy | Male Pin | Right Angle Surface Mount | Latch Holder | 4.4 mm | 0.173 in | Header | 1 | 50 V | Board to Cable/Wire |
