DX1090 Series

Catalog

LED PANEL INDICATOR GREEN 2V

Part	Current	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Lens Size	Lens Size	Type	Millicandela Rating	Lens Style	Panel Cutout Shape	Voltage	Termination Style	Voltage	Voltage	Current

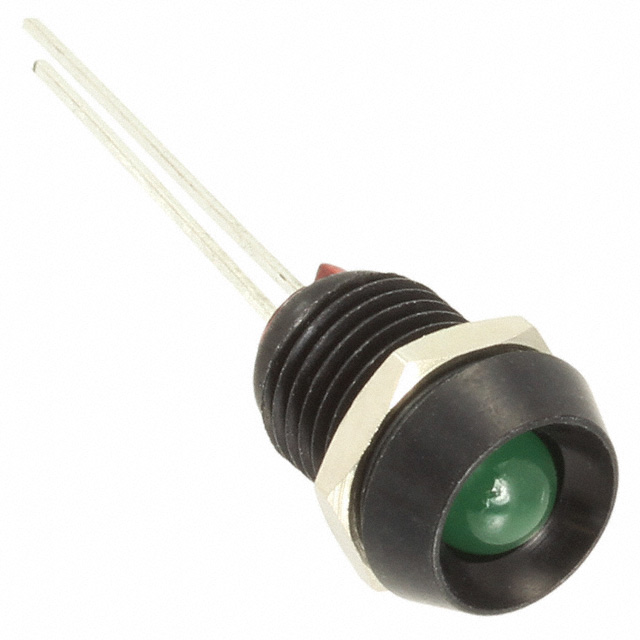

BULGIN LIMITED DX1090/GN	25 mA	0.315 in	8 mm	Green	5 mm	T-1 3/4	LED	20 mcd	Round with Domed Top	Round	2 V	PC Pin

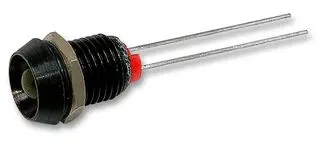

BULGIN LIMITED DX1090/YL	30 mA	0.315 in	8 mm	Yellow	5 mm	T-1 3/4	LED	20 mcd	Round with Domed Top	Round	2.1 V	PC Pin
BULGIN LIMITED DX1090/D1		0.315 in	8 mm	Green Red	5 mm	T-1 3/4	LED	4.5 mcd 5 mcd	Round with Domed Top	Round		PC Pin	2.2 V	2.2 V	30mA Green 30mA Red

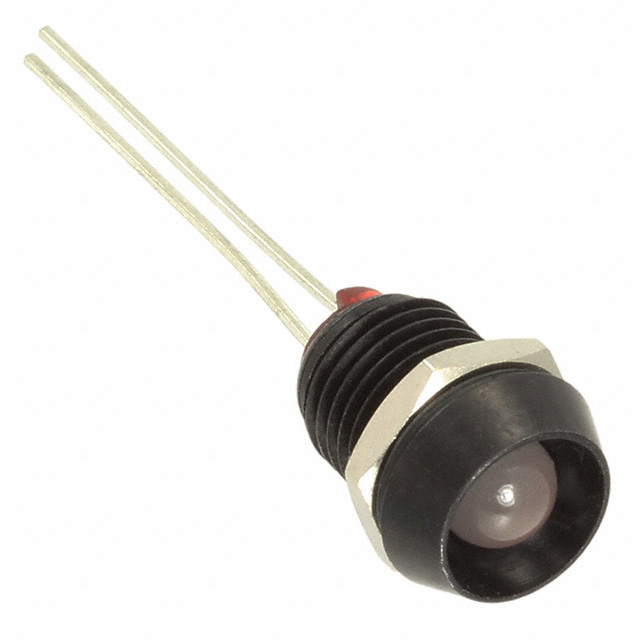

BULGIN LIMITED DX1090/D3	20 mA 30 mA	0.315 in	8 mm	Amber Green	5 mm	T-1 3/4	LED	4 mcd 5 mcd	Round with Domed Top	Round	2.2 V 2.2 V	PC Pin
BULGIN LIMITED DX1090/RD	30 mA	0.315 in	8 mm	Red	5 mm	T-1 3/4	LED	25 mcd	Round with Domed Top	Round	2 V	PC Pin
