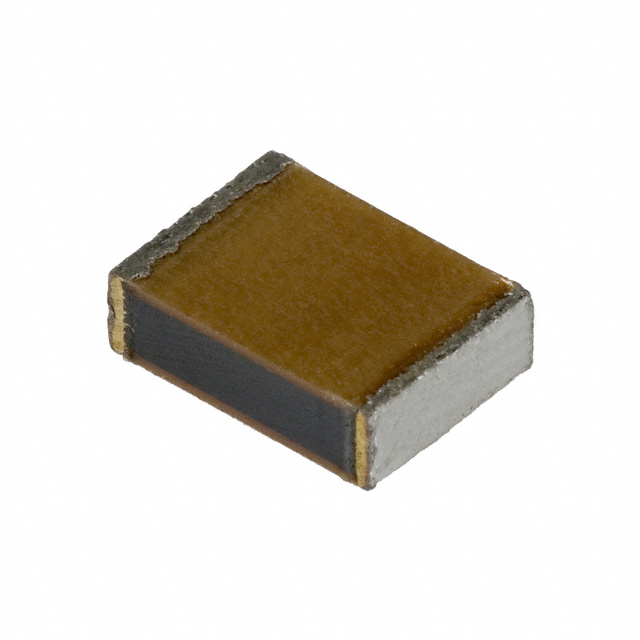

ECH-U Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.12UF 2% 100VDC 2820

Part	Applications	Height - Seated (Max)	Height - Seated (Max)	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Dielectric Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Package / Case	Voltage Rating - DC	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [z]	Height - Seated (Max) [z]
Panasonic Electronic Components ECH-U1124GC9	General Purpose	3.7 mm	0.146 in	40 V	Surface Mount	-55 C	105 ░C	0.12 µF	Polyphenylene Sulfide (PPS) Metallized - Stacked	5 mm	0.197 "	7.1 mm	0.28 in	2 %	2820 (7150 Metric)	100 V	Solder Pads
Panasonic Electronic Components ECH-U1333JC9	General Purpose			40 V	Surface Mount	-55 C	105 ░C	0.033 çF	Polyphenylene Sulfide (PPS) Metallized - Stacked	4.1 mm	0.161 in	6 mm	0.236 in	5 %		100 V	Solder Pads	0.079 in	2 mm
Panasonic Electronic Components ECH-U1393GC9	General Purpose			40 V	Surface Mount	-55 C	105 ░C	0.039 µF	Polyphenylene Sulfide (PPS) Metallized - Stacked	4.1 mm	0.161 in	6 mm	0.236 in	2 %		100 V	Solder Pads			0.087 in	2.2 mm
Panasonic Electronic Components ECH-U1104JC9	General Purpose			40 V	Surface Mount	-55 C	105 ░C	100000 pF	Polyphenylene Sulfide (PPS) Metallized - Stacked	5 mm	0.197 "	7.1 mm	0.28 in	5 %	2820 (7150 Metric)	100 V	Solder Pads	3.3 mm				0.13 in

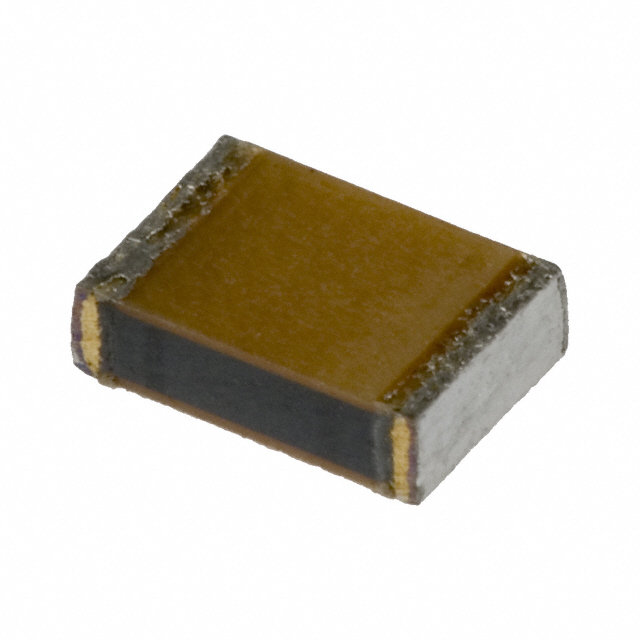

Panasonic Electronic Components ECH-U1273JC9	General Purpose			40 V	Surface Mount	-55 C	105 ░C	0.027 µF	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.13 in		0.189 in		5 %	1913 (4833 Metric)	100 V	Solder Pads			0.118 "	3 mm		4.8 mm	3.3 mm
Panasonic Electronic Components ECH-U1563JC9	General Purpose			40 V	Surface Mount	-55 C	105 ░C	56000 pF	Polyphenylene Sulfide (PPS) Metallized - Stacked	4.1 mm	0.161 in	6 mm	0.236 in	5 %		100 V	Solder Pads			0.118 "	3 mm
Panasonic Electronic Components ECH-U1153GC9	General Purpose			40 V	Surface Mount	-55 C	105 ░C	15000 pF	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.13 in		0.189 in		2 %	1913 (4833 Metric)	100 V	Solder Pads			0.087 in	2.2 mm		4.8 mm	3.3 mm
Panasonic Electronic Components ECH-U1183GC9	General Purpose			40 V	Surface Mount	-55 C	105 ░C	0.018 µF	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.13 in		0.189 in		2 %	1913 (4833 Metric)	100 V	Solder Pads			0.087 in	2.2 mm		4.8 mm	3.3 mm

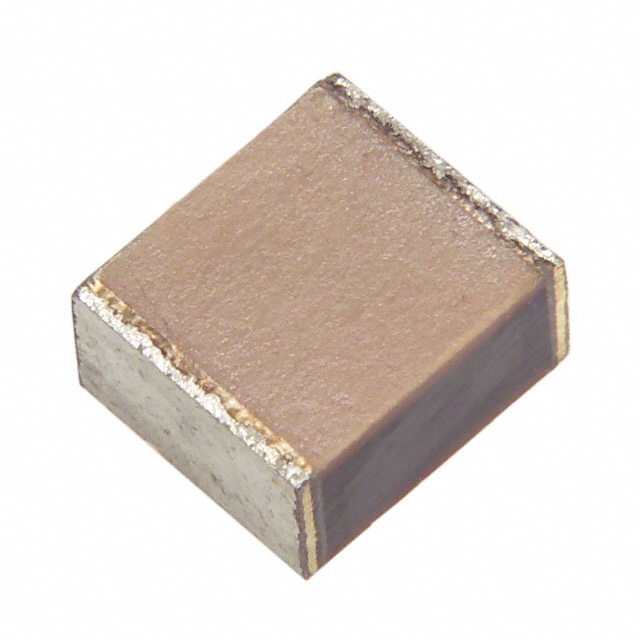

Panasonic Electronic Components ECH-U1224GCV	General Purpose			40 V	Surface Mount	-55 C	105 ░C	0.22 µF	Polyphenylene Sulfide (PPS) Metallized - Stacked	6.3 mm	0.248 in	7.1 mm	0.28 in	2 %	2825 (7163 Metric)	100 V	Solder Pads			0.201 in	5.1 mm
Panasonic Electronic Components ECH-U1223GC9	General Purpose			40 V	Surface Mount	-55 C	105 ░C	0.022 µF	Polyphenylene Sulfide (PPS) Metallized - Stacked	0.13 in		0.189 in		2 %	1913 (4833 Metric)	100 V	Solder Pads						4.8 mm	3.3 mm	2.6 mm	0.102 in
