306-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K

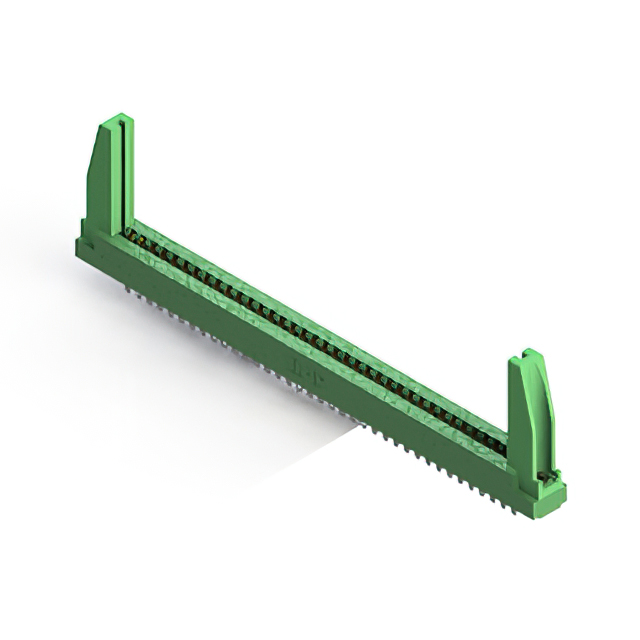

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 37 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Features | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Number of Positions | Number of Positions/Bay/Row | Read Out | Pitch | Pitch | Gender | Color | Contact Material | Card Type | Mounting Type | Termination | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Card Guides | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.25 Ám | 10 Áin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Card Guides | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.25 Ám | 10 Áin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | Gold | 0.25 Ám | 10 Áin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.128 " | 3.25 mm | |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Tin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||||
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | Tin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Gold | 0.25 Ám | 10 Áin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | Tin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Card Guides | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Gold | 0.25 Ám | 10 Áin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Gold | 0.25 Ám | 10 Áin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Panel Mount | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Gold | 0.25 Ám | 10 Áin | Cantilever | 74 | 37 | Dual | 3.96 mm | 0.156 in | Female | Green | Copper Alloy | Non Specified - Dual Edge | Through Hole | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 |
