6502UE Series
Manufacturer: Belden Inc.
Beta
⌘K

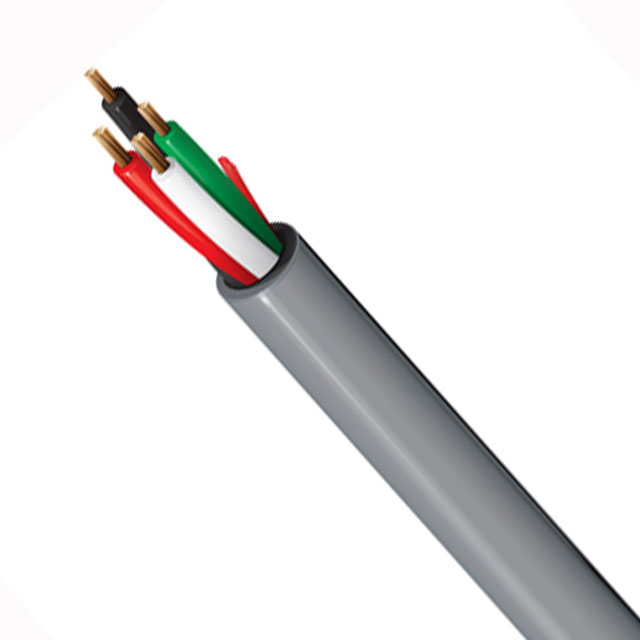

CABLE 4COND 22AWG NATURAL 500'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Features | Number of Conductors | Jacket Color | Usage | Length | Length | Conductor Insulation | Wire Gauge | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Material | Jacket (Insulation) Material | Voltage | Ratings | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 30 AWG | 7 | Rip Cord | 4 | Natural | Security Sound | 152.4 m | 500 ft | Low Smoke Poly-Vinyl Chloride (LSPVC) | 22 AWG | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 300 VDC | UL Style CMP | Multi-Conductor |
Belden Inc. | 30 AWG | 7 | Rip Cord | 4 | Natural | Security Sound | 304.8 m | 1000 ft | Low Smoke Poly-Vinyl Chloride (LSPVC) | 22 AWG | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 300 VDC | UL Style CMP | Multi-Conductor |
Belden Inc. | 30 AWG | 7 | Rip Cord | 4 | Natural | Security Sound | 304.8 m | 1000 ft | Low Smoke Poly-Vinyl Chloride (LSPVC) | 22 AWG | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 300 VDC | UL Style CMP | Multi-Conductor |
 Belden Inc. | 30 AWG | 7 | Rip Cord | 4 | Natural | Security Sound | 152.4 m | 500 ft | Low Smoke Poly-Vinyl Chloride (LSPVC) | 22 AWG | 0.381 mm | 0.015 in | 75 ░C | 0 °C | Copper Bare | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 300 VDC | UL Style CMP | Multi-Conductor |
