BC-202-195 Series
Manufacturer: Big Cat Cables
Beta
⌘K

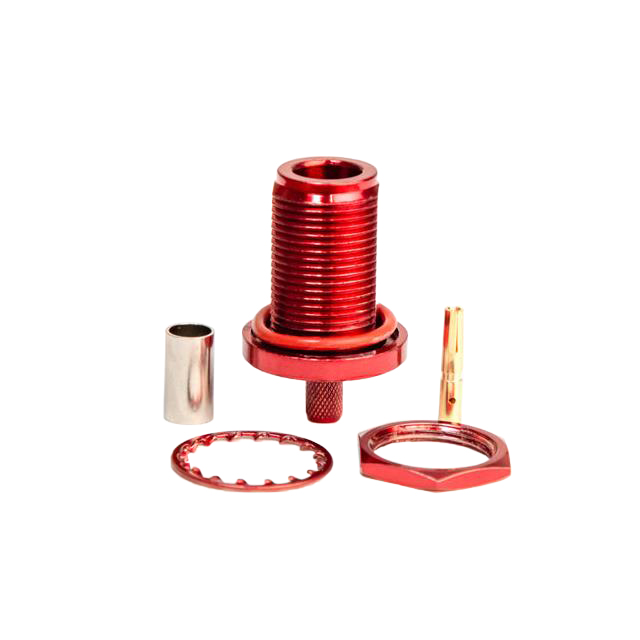

N TYPE FEMALE CRIMP CONNECTOR RE
| Part | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Dielectric Material | Voltage Rating | Cable Group | Housing Color | Contact Termination | Number of Ports | Ingress Protection | Frequency - Max [Max] | Mounting Type | Shield Termination | Connector Type | Connector Style | Mounting Feature | Center Contact Material | Fastening Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Big Cat Cables | 500 | -65 ░C | 165 °C | Gold | Brass | Polytetrafluoroethylene (PTFE) | 1000 VDC | LMR-195 | Red | Crimp | 1 | Waterproof | 6000 MHz | Panel Mount | Crimp | Female Socket Jack | N Type | Bulkhead - Front Side Nut | Brass | Threaded | 50 Ohms |
