71S201 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN ADAPT JACK TO PLUG BNC
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Material | Mating Cycles | Convert To (Adapter End) | Adapter Series | Adapter Type | Style | Fastening Type | Convert From (Adapter End) | Conversion Type | Mounting Type | Center Contact Plating | Frequency - Max [Max] | Impedance | Voltage Rating | Includes | Contact Termination | Housing Color | Cable Group | Number of Ports | Shield Termination | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | White Bronze | Beryllium Copper Brass | 500 | BNC Jack Female Socket | BNC to BNC | Plug to Jack | Right Angle | Bayonet Lock | BNC Plug Male Pin | Same Series | Free Hanging (In-Line) Right Angle | Gold | 4 GHz | 75 Ohms | |||||||||

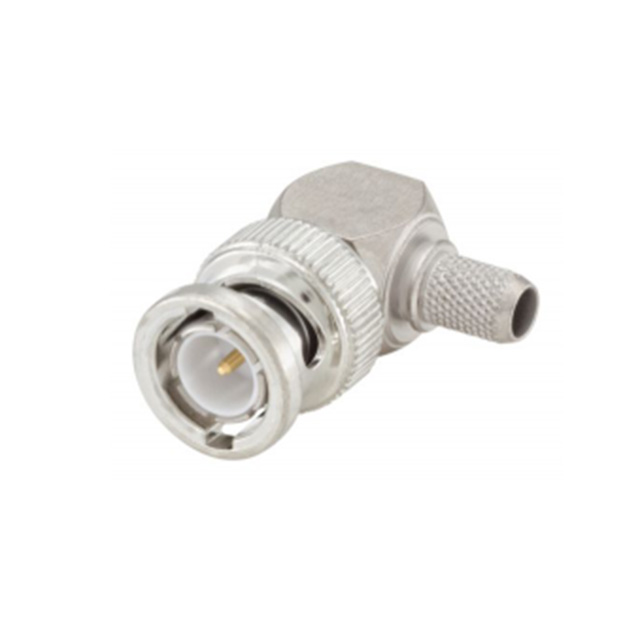

 Rosenberger | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | White Bronze | Brass | 500 | Bayonet Lock | Free Hanging (In-Line) Right Angle | Gold | 4 GHz | 75 Ohms | 400 V | 1 Connector 1 End Cap 1 Ferrule | Solder | Silver | RG-59B | 1 | Crimp | Plug Male Pin | BNC |
