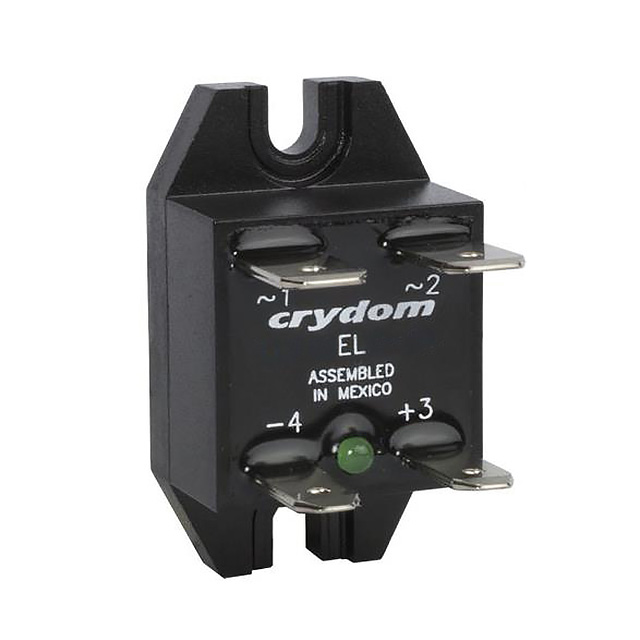

EL240A3 Series

Catalog

SSR RELAY SPST-NO 30A 24-280V

Part	Termination Style	Termination Style	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Output Type	Mounting Type	Load Current	Package / Case
Sensata-Crydom EL240A30-05NP	0.187 in 0.25 in	Quick Connect	CE cURus TUV	8 VDC	4 V	80 °C	-30 ░C	24 V	280 V	AC Zero Cross	Chassis Mount	30 A	Module
Sensata-Crydom EL240A30-12	0.187 in 0.25 in	Quick Connect	CE cURus TUV	14 V	10 V	80 °C	-30 ░C	24 V	280 V	AC Zero Cross	Chassis Mount	30 A	Module
Sensata-Crydom EL240A30-12P	0.187 in 0.25 in	Quick Connect	CE cURus TUV	14 V	10 V	80 °C	-30 ░C	24 V	280 V	AC Zero Cross	Chassis Mount	30 A	Module
Sensata-Crydom EL240A30-24N	0.187 in 0.25 in	Quick Connect	CE cURus TUV	27 V	21 V	80 °C	-30 ░C	24 V	280 V	AC Zero Cross	Chassis Mount	30 A	Module
Sensata-Crydom EL240A30-12N	0.187 in 0.25 in	Quick Connect	CE cURus TUV	14 V	10 V	80 °C	-30 ░C	24 V	280 V	AC Zero Cross	Chassis Mount	30 A	Module
Sensata-Crydom EL240A30-12NP	0.187 in 0.25 in	Quick Connect	CE cURus TUV	14 V	10 V	80 °C	-30 ░C	24 V	280 V	AC Zero Cross	Chassis Mount	30 A	Module
