PX0931 Series

Catalog

CONN RCPT MALE 10P NICKEL SCREW

Part	Fastening Type	Voltage Rating	Primary Material	Contact Finish - Mating	Mounting Feature	Contact Material	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Features	Number of Positions	Shielding	Color	Ingress Protection	Connector Type	Cable Opening [Max]	Cable Opening [Min]	Termination	Orientation	Operating Temperature [Max]	Operating Temperature [Min]
BULGIN LIMITED PX0931/10/P	Threaded	250 VAC	Plastic	Nickel	Bulkhead	Brass	10 A	Panel Mount	UL94 V-0	UV Resistant	10	Unshielded	Black	IP68 IP69K	Receptacle Male Pins	0.512 in 13 mm	0.276 " 7 mm	Screw	Keyed	85 °C	-40 C
BULGIN LIMITED PX0931/03/P	Threaded	600 VAC	Plastic	Nickel	Bulkhead	Brass	32 A	Panel Mount	UL94 V-0	UV Resistant	3	Unshielded	Black	IP68 IP69K	Receptacle Male Pins	0.512 in 13 mm	0.276 " 7 mm	Screw	Keyed	85 °C	-40 C

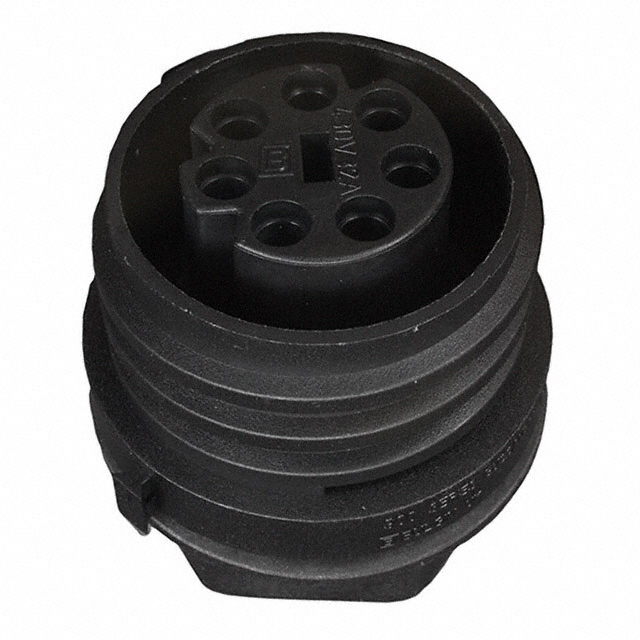

BULGIN LIMITED PX0931/07/S	Threaded	430 VAC/DC	Plastic	Nickel	Bulkhead	Brass	32 A	Panel Mount	UL94 V-0	UV Resistant	7	Unshielded	Black	IP68 IP69K	Receptacle Female Sockets	0.512 in 13 mm	0.276 " 7 mm	Screw	Keyed	85 °C	-40 C
