3138133 Series

Catalog

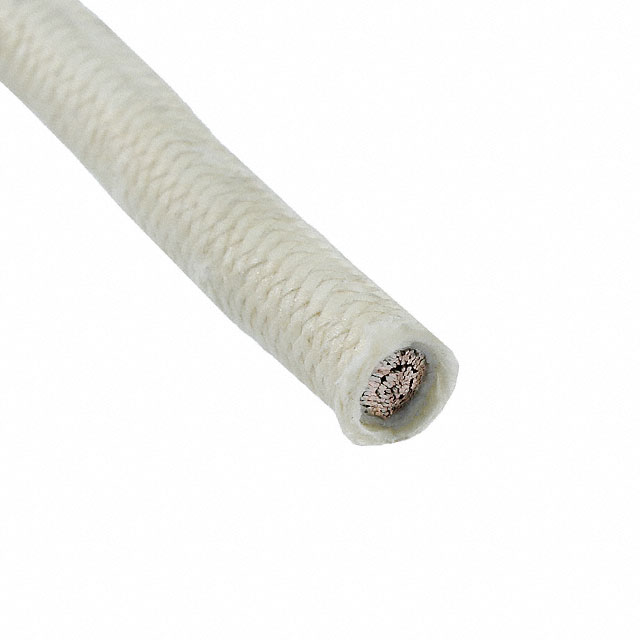

WIRE, HOOK UP/LEAD, HI TEMP, FIBREGLASS, NATURAL, 8 AWG, 8.61 MM², 500 FT

Part	Cable Type	Voltage	Conductor Material	Wire Gauge	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
ALPHA WIRE 3138133 TN002	Hook-Up Shielded	600 V	Copper Nickel Coated	8 AWG	UL Style 5196	-55 °C	250 °C	0.232 in	5.89 mm	Polytetrafluoroethylene (PTFE) Impregnated Fiberglass	Tan	0.005 in	0.13 mm	500 '	152.4 m	29 AWG	133
ALPHA WIRE 3138133 TN001	Hook-Up Shielded	600 V	Copper Nickel Coated	8 AWG	UL Style 5196	-55 °C	250 °C	0.232 in	5.89 mm	Polytetrafluoroethylene (PTFE) Impregnated Fiberglass	Tan	0.005 in	0.13 mm			29 AWG	133	1000 ft	304.8 m
