ESB00 Series

Catalog

CONN PLG HSG FMALE 12POS INLINE

Part	Connector Type	Insert Material	Fastening Type	Features	Contact Shape	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Shell Material	Shielding	Shell Finish	Material Flammability Rating	Housing Color	Operating Temperature (Min)	Operating Temperature (Max)	Type	Orientation	Includes	Includes Total Count	Note
TE Intercontec ESB002N00330001000	Plug Housing	Nylon PA PBT Polyamide Polybutylene Terephthalate	Push-Twist	Backshell Cable Clamp Coupling Nut	Circular	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP66 IP67	12	Zinc Die Cast	Shielded	Nickel	UL94 V-0	Silver	-20 °C	130 °C	For Female Sockets	Keyed	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Contacts Not Included
TE Intercontec ESB002N00310001000	Plug Housing	Nylon PA PBT Polyamide Polybutylene Terephthalate	Push-Twist	Backshell Cable Clamp Coupling Nut	Circular	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP66 IP67	12	Zinc Die Cast	Shielded	Nickel	UL94 V-0	Silver	-20 °C	130 °C	For Female Sockets	Keyed	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Contacts Not Included

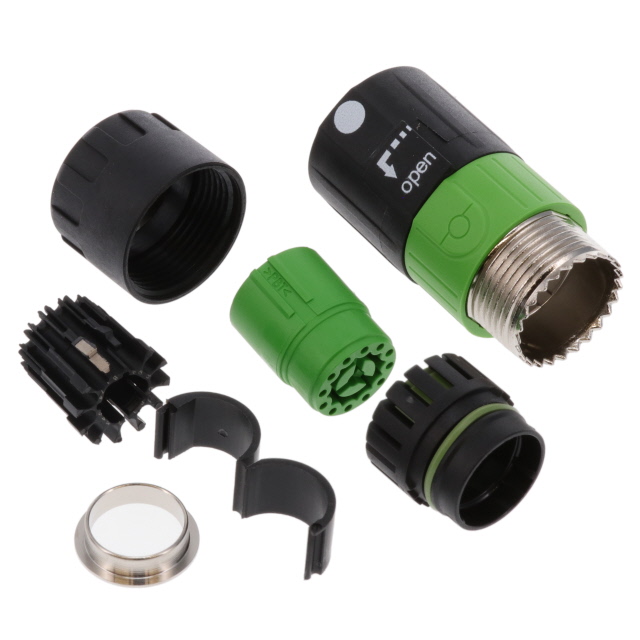

TE Intercontec ESB002N00320001000	Plug Housing	Nylon PA PBT Polyamide Polybutylene Terephthalate	Push-Twist	Backshell Cable Clamp Coupling Nut	Circular	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP66 IP67	12	Zinc Die Cast	Shielded	Nickel	UL94 V-0	Silver	-20 °C	130 °C	For Female Sockets	Keyed	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Contacts Not Included
TE Intercontec ESB001N00310001000	Plug Housing	Nylon PA PBT Polyamide Polybutylene Terephthalate	Push-Twist	Backshell Cable Clamp Coupling Nut	Circular	Free Hanging (In-Line)	Dust Tight Water Resistant Waterproof	IP66 IP67	12	Zinc Die Cast	Shielded	Nickel	UL94 V-0	Silver	-20 °C	130 °C	For Female Sockets	Keyed	Clip Contact Block Contact Housing EMI Ring Grommet Nut Shell Housing	7 pcs	Contacts Not Included
