MCS2305 Series

Catalog

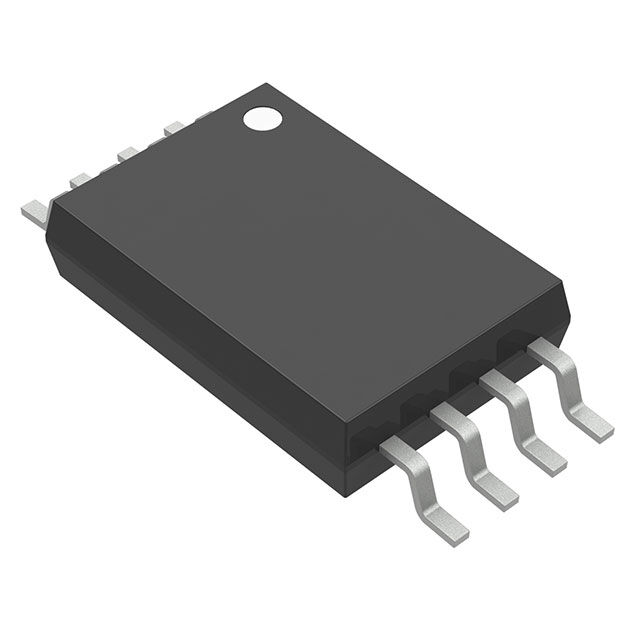

MOSFET P-CH 20V 8.2A 8TSSOP

Part	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Vgs(th) (Max) @ Id	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Drain to Source Voltage (Vdss)	Operating Temperature [Min]	Operating Temperature [Max]	FET Type	Package / Case	Package / Case [custom]	Package / Case [custom]	Vgs (Max)	Technology
Micro Commercial Components MCS2305B-TP	8.2 A	1.05 W	900 mV	8-TSSOP	29 nC	1.8 V 4.5 V	8.5 mOhm	Surface Mount	1255 pF	20 V	-55 °C	150 °C	P-Channel	8-TSSOP	0.173 "	4.4 mm	8 V	MOSFET (Metal Oxide)
