86503 Series

Catalog

CONN HEADER VERT 12POS 2.54MM

Part	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Finish - Mating	Fastening Type	Contact Length - Mating	Contact Length - Mating	Number of Positions	Number of Positions Loaded	Termination	Insulation Color	Mounting Type	Shrouding	Contact Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Shape	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Rows	Voltage Rating	Connector Type	Contact Finish - Post

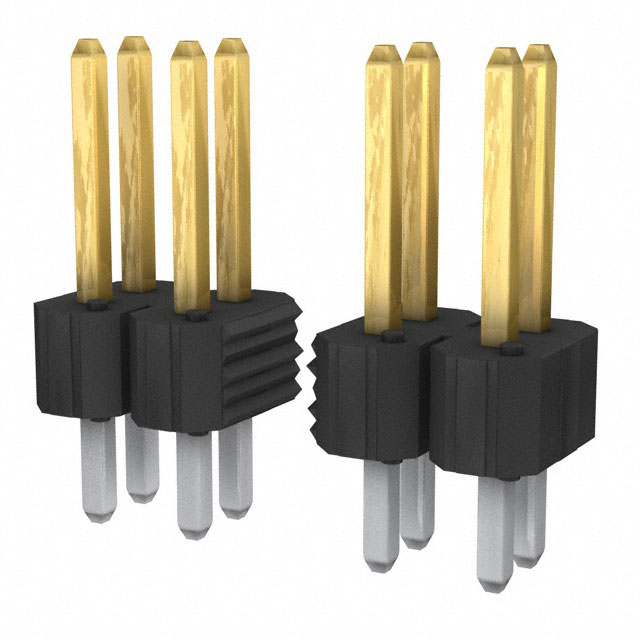

Amphenol ICC (FCI) 86503-112HLF	11.94 mm	0.47 "	0.1 in	2.54 mm	Gold or Gold GXT™	Push-Pull	6.35 mm	0.25 in	12	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	30 Áin	0.76 Ám	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header

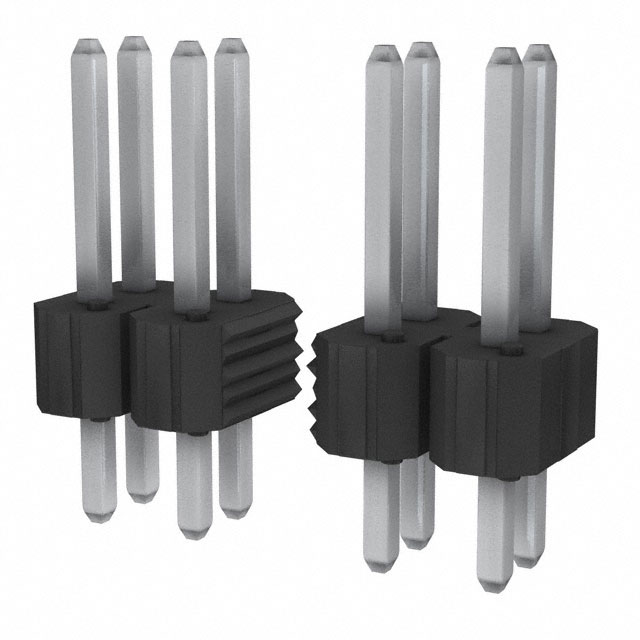

Amphenol ICC (FCI) 86503-414HLF	11.94 mm	0.47 "	0.1 in	2.54 mm		Push-Pull	6.35 mm	0.25 in	14	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	100 çin	2.54 çm	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header	Tin
Amphenol ICC (FCI) 86503-172HLF	11.94 mm	0.47 "	0.1 in	2.54 mm	Gold or Gold GXT™	Push-Pull	6.35 mm	0.25 in	72	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm		Square	UL94 V-0	30 Áin	0.76 Ám	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2		Header
Amphenol ICC (FCI) 86503-130HLF	11.94 mm	0.47 "	0.1 in	2.54 mm	Gold or Gold GXT™	Push-Pull	6.35 mm	0.25 in	30	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	30 Áin	0.76 Ám	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header
Amphenol ICC (FCI) 86503-442HLF	11.94 mm	0.47 "	0.1 in	2.54 mm		Push-Pull	6.35 mm	0.25 in	42	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	100 çin	2.54 çm	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header	Tin
Amphenol ICC (FCI) 86503-430HLF	11.94 mm	0.47 "	0.1 in	2.54 mm		Push-Pull	6.35 mm	0.25 in	30	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	100 çin	2.54 çm	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header	Tin
Amphenol ICC (FCI) 86503-150HLF	11.94 mm	0.47 "	0.1 in	2.54 mm	Gold or Gold GXT™	Push-Pull	6.35 mm	0.25 in	50	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	30 Áin	0.76 Ám	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header
Amphenol ICC (FCI) 86503-456HLF	11.94 mm	0.47 "	0.1 in	2.54 mm		Push-Pull	6.35 mm	0.25 in	56	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	100 çin	2.54 çm	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header	Tin
Amphenol ICC (FCI) 86503-464HLF	11.94 mm	0.47 "	0.1 in	2.54 mm		Push-Pull	6.35 mm	0.25 in	64	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	100 çin	2.54 çm	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header	Tin
Amphenol ICC (FCI) 86503-468HLF	11.94 mm	0.47 "	0.1 in	2.54 mm		Push-Pull	6.35 mm	0.25 in	68	All	Solder	Black	Through Hole	Unshrouded	Phosphor Bronze	0.1 in	2.54 mm	5 A	Square	UL94 V-0	100 çin	2.54 çm	0.12 in	3.05 mm	2.54 mm	0.1 in	Male Pin	2	110 VDC	Header	Tin
