3252L Series
Manufacturer: Bourns Inc.
Beta
⌘K

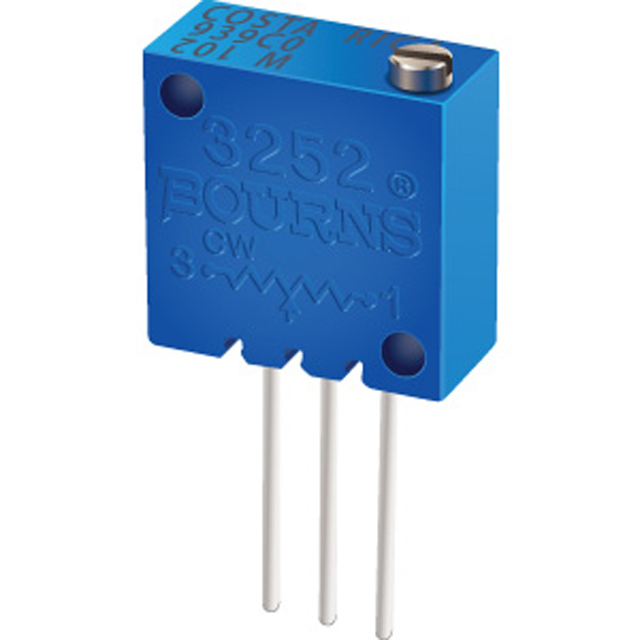

TRIMMER 25K OHM 0.75W WIRE LEADS
| Part | Resistance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Adjustment Type | Temperature Coefficient | Resistive Material | Termination Style | Mounting Type | Tolerance | Power (Watts) | Power (Watts) | Number of Turns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 25 kOhms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Chassis Mount | 10 % | 3/4W | 0.75 W | 25 |
Bourns Inc. | 2 kOhms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Panel Mount Wire Leads | 10 % | 3/4W | 0.75 W | 25 |
Bourns Inc. | 2 kOhms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Chassis Mount | 10 % | 3/4W | 0.75 W | 25 |
Bourns Inc. | 3 MOhms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Chassis Mount | 10 % | 3/4W | 0.75 W | 25 |
Bourns Inc. | 20 Ohms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Chassis Mount | 10 % | 3/4W | 0.75 W | 25 |
Bourns Inc. | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Panel Mount Wire Leads | 10 % | 3/4W | 0.75 W | 25 | |
Bourns Inc. | 200000 Ohms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Chassis Mount | 10 % | 3/4W | 0.75 W | 25 |
Bourns Inc. | 50 Ohms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Chassis Mount | 10 % | 3/4W | 0.75 W | 25 |
Bourns Inc. | 10000 Ohms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Panel Mount Wire Leads | 10 % | 3/4W | 0.75 W | 25 |
Bourns Inc. | 1000 Ohms | 12.7 mm | 4.75 mm | 0.187 " | 0.5 " | Top Adjustment | 100 ppm/°C | Cermet | Wire Leads | Panel Mount Wire Leads | 10 % | 3/4W | 0.75 W | 25 |
