R14118 Series

Catalog

BNC / RIGHT ANGLE PLUG CRIMP TYP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Voltage Rating	Body Finish	Body Material	Center Contact Plating	Cable Group	Cable Group	Mounting Type	Frequency - Max [Max]	Housing Color	Number of Ports	Shield Termination	Fastening Type	Connector Style	Impedance	Contact Termination	Connector Type	Center Contact Material	Mating Cycles	Includes
Radiall USA, Inc. R141182161W	-35 °C	70 °C	Polypropylene (PP)	500 V	Nickel	Brass	Gold	RG-58	141	Free Hanging (In-Line) Right Angle	1.5 GHz	Silver	1	Crimp	Bayonet Lock	BNC	50 Ohms	Crimp	Plug Male Pin	Brass

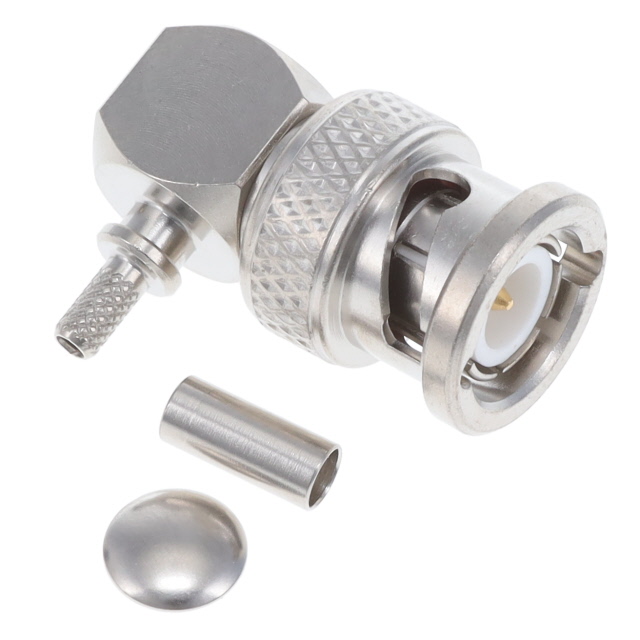

Radiall USA, Inc. R141181161	-35 °C	70 °C	Polypropylene (PP)	335 V	Nickel	Brass	Gold	RG-174	316	Free Hanging (In-Line) Right Angle	1.5 GHz	Silver	1	Crimp	Bayonet Lock	BNC	50 Ohms	Crimp	Plug Male Pin	Brass	500

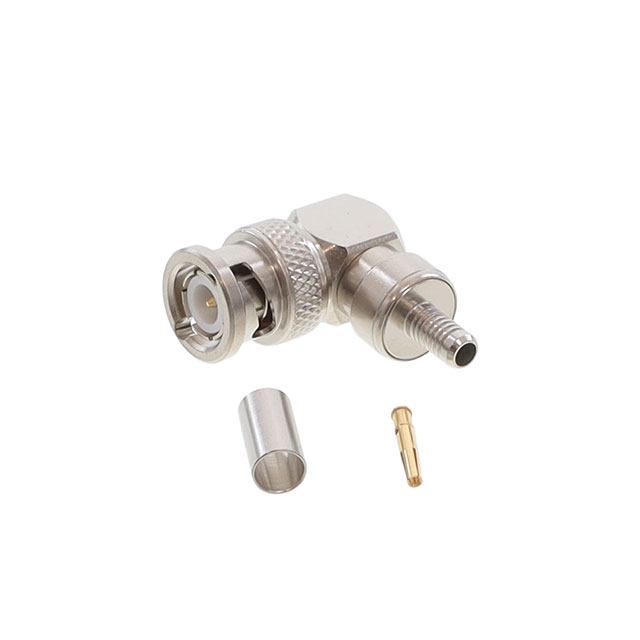

Radiall USA, Inc. R141182000	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	500 V	Nickel	Brass	Gold	RG-58	141	Free Hanging (In-Line) Right Angle	4 GHz	Silver	1	Crimp	Bayonet Lock	BNC	50 Ohms	Crimp	Plug Male Pin	Beryllium Copper	500
Radiall USA, Inc. R141182000W	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	500 V	Nickel	Brass	Gold	RG-58	141	Free Hanging (In-Line) Right Angle	4 GHz	Silver	1	Crimp	Bayonet Lock	BNC	50 Ohms	Crimp	Plug Male Pin	Beryllium Copper	500

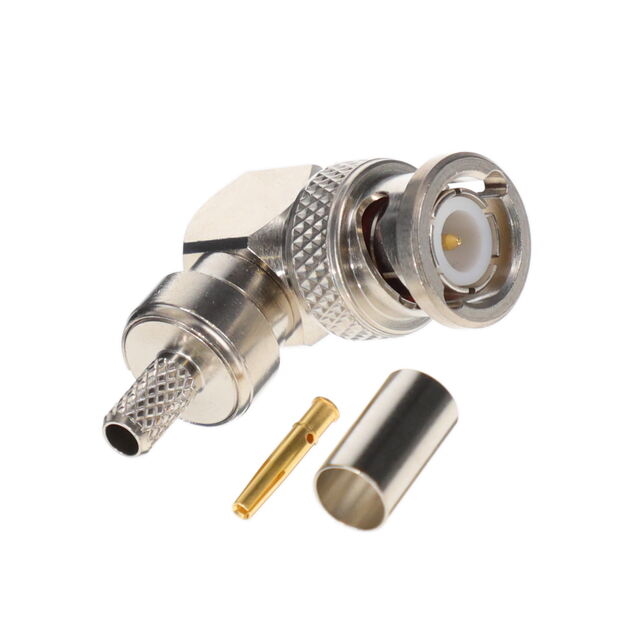

Radiall USA, Inc. R141183000	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	500 V	Nickel	Brass	Gold	223 400 RG-142		Free Hanging (In-Line) Right Angle	4 GHz	Silver	1	Crimp	Bayonet Lock	BNC	50 Ohms	Crimp	Plug Male Pin	Beryllium Copper Brass	500	1 Connector 1 Contact 1 Ferrule
Radiall USA, Inc. R141181161W	-35 °C	70 °C	Polypropylene (PP)	500 V	Nickel	Brass	Gold	RG-174	316	Free Hanging (In-Line) Right Angle	1.5 GHz	Silver	1	Crimp	Bayonet Lock	BNC	50 Ohms	Crimp	Plug Male Pin	Brass

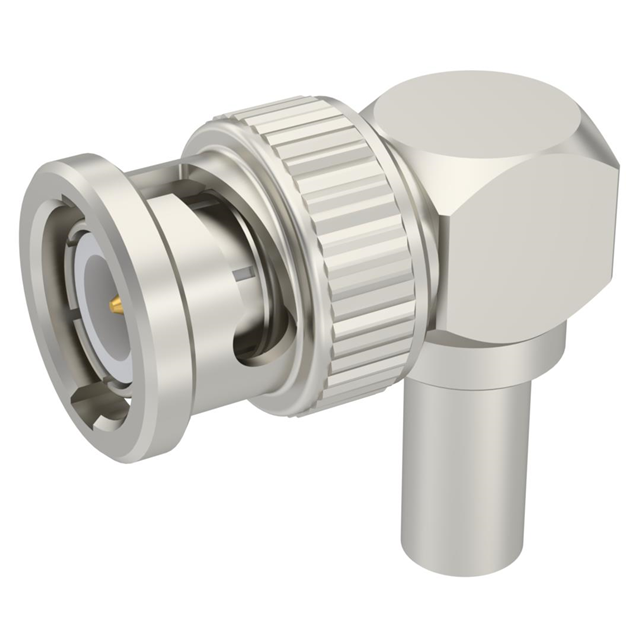

Radiall USA, Inc. R141182161	-35 °C	70 °C	Polypropylene (PP)	500 V	Nickel	Brass	Gold	RG-58	141	Free Hanging (In-Line) Right Angle	1.5 GHz	Silver	1	Crimp	Bayonet Lock	BNC	50 Ohms	Crimp	Plug Male Pin	Brass
