5010/50C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

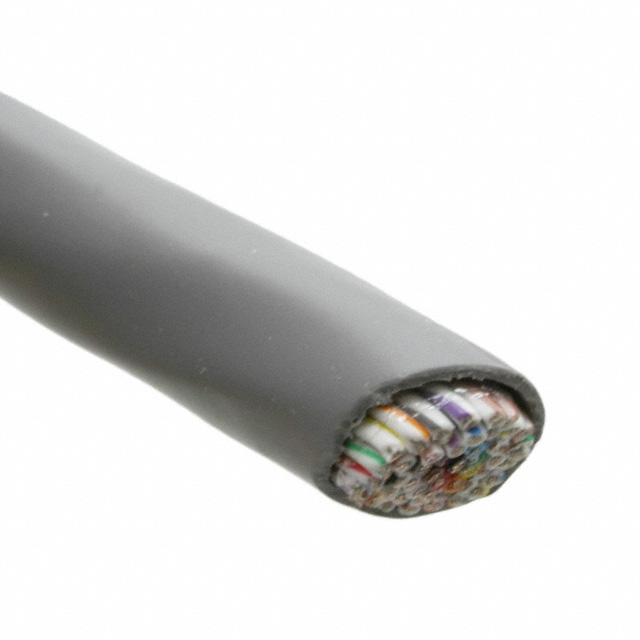

CABLE 50COND 22AWG SLATE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Wire Gauge | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Voltage | Number of Conductors | Jacket (Insulation) Material | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Ratings | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -35 °C | 105 ░C | Communication Control | 22 AWG | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Conductor | 300 VDC | 50 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 12.14 mm | 0.478 " | 152.4 m | 500 ft | 0.813 mm | 0.032 in | Slate | UL Style 2464 | Biological Compatibility Rip Cord | ||
ALPHA WIRE | -35 °C | 105 ░C | Communication Control | 22 AWG | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Multi-Conductor | 300 VDC | 50 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 12.14 mm | 0.478 " | 0.813 mm | 0.032 in | Slate | ISO 10993 UL Style 2464 | Biological Compatibility Rip Cord | 100 ft | 30.5 m |
