PET.3F Series
Manufacturer: LEMO
Beta
⌘K

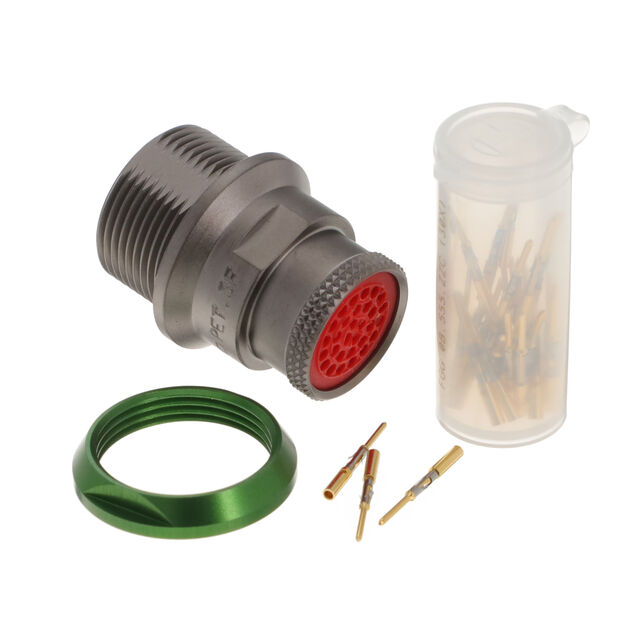

CONN RCPT MALE 30POS GOLD CRIMP
| Part | Mounting Type | Color | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Termination | Contact Finish - Mating | Applications | Shell Size - Insert | Current Rating (Amps) | Shell Material | Shielding | Connector Type | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Contact Material | Insert Material | Orientation | Mounting Feature | Material Flammability Rating | Number of Positions | Fastening Type | Cable Opening | Cable Opening | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Panel Mount | Gray | 39.4 µin | 1 µm | Crimp | Gold | Aerospace | 330 | 3.5 A | Aluminum Alloy | Shielded | Receptacle Male Pins | Nickel | -15 °C | 200 °C | IP67 - Dust Tight Waterproof | Brass | Polyetheretherketone (PEEK) | T | Bulkhead - Front Side Nut | UL94 V-0 | 30 | Push-Pull | 0.63 in | 16 mm | Metal |
