1470108 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

2.0MM PITCH HEADER,DIP 26P

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Number of Rows [custom]	Voltage Rating	Contact Length - Post	Contact Length - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Post	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Style	Termination	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Shrouding	Contact Material	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]

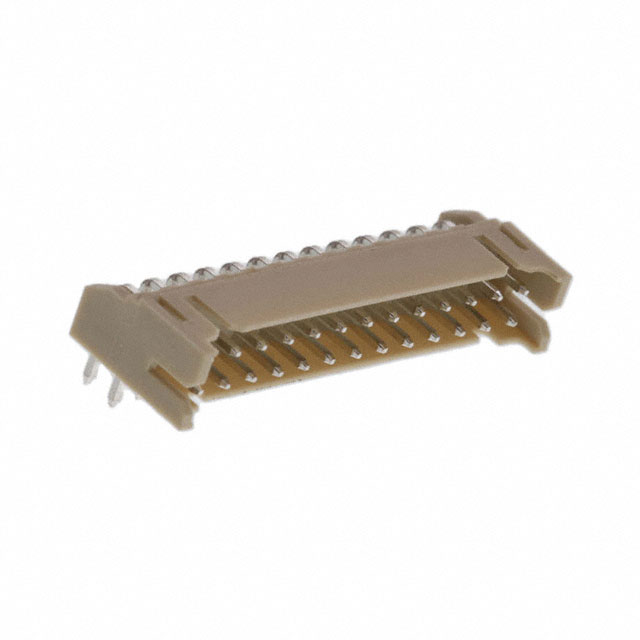

TE Connectivity AMP Connectors 2-1470108-6	Automotive General Purpose Industrial Medical	2.54 µm	100 µin	0.76 Ám	30 Áin	0.197 "	5 mm	Header	3 A	2	100 V	0.118 in	3 mm	Right Angle Through Hole	0.079 "	2 mm	Square	Tin	Natural	All	Gold	Board to Cable/Wire	Solder	UL94 V-0	85 °C	-25 °C	Thermoplastic	Shrouded - 4 Wall	Brass	26	2 mm	0.079 in	Male Pin
TE Connectivity AMP Connectors 2-1470108-2	Automotive General Purpose Industrial Medical	2.54 µm	100 µin	0.76 Ám	30 Áin	0.197 "	5 mm	Header	3 A	2	100 V	0.118 in	3 mm	Right Angle Through Hole	0.079 "	2 mm	Square	Tin	Natural	All	Gold	Board to Cable/Wire	Solder	UL94 V-0	85 °C	-25 °C	Thermoplastic	Shrouded - 4 Wall	Brass	22	2 mm	0.079 in	Male Pin
TE Connectivity AMP Connectors 1-1470108-4	Automotive General Purpose Industrial Medical	2.54 µm	100 µin	0.76 Ám	30 Áin	0.197 "	5 mm	Header	3 A	2	100 V	0.118 in	3 mm	Right Angle Through Hole	0.079 "	2 mm	Square	Tin	Natural	All	Gold	Board to Cable/Wire	Solder	UL94 V-0	85 °C	-25 °C	Thermoplastic	Shrouded - 4 Wall	Brass	14	2 mm	0.079 in	Male Pin
TE Connectivity AMP Connectors 4-1470108-6	Automotive General Purpose Industrial Medical	2.54 µm	100 µin	0.76 Ám	30 Áin	0.197 "	5 mm	Header	3 A	2	100 V			Right Angle Through Hole	0.079 "	2 mm	Square	Tin	Natural	All	Gold	Board to Cable/Wire	Solder	UL94 V-0	85 °C	-25 °C	Thermoplastic	Shrouded - 4 Wall	Brass	16	2 mm	0.079 in	Male Pin	0.106 in	2.69 mm
TE Connectivity AMP Connectors 2-1470108-0	Automotive General Purpose Industrial Medical	2.54 µm	100 µin	0.76 Ám	30 Áin	0.197 "	5 mm	Header	3 A	2	100 V	0.118 in	3 mm	Right Angle Through Hole	0.079 "	2 mm	Square	Tin	Natural	All	Gold	Board to Cable/Wire	Solder	UL94 V-0	85 °C	-25 °C	Thermoplastic	Shrouded - 4 Wall	Brass	20	2 mm	0.079 in	Male Pin
