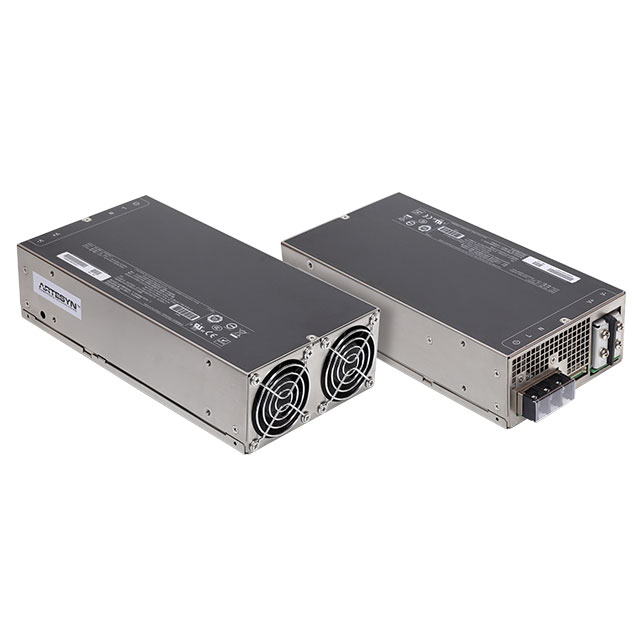

LCM1000 Series

Rack Mount Power Supplies 24V @ 1000W 5Vsb

Manufacturer: ARTESYN / Advanced Energy

Catalog

Rack Mount Power Supplies 24V @ 1000W 5Vsb

Catalog

Rack Mount Power Supplies 24V @ 1000W 5Vsb

Part	Minimum Load Required	Number of Outputs	Features	Standard Number	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Type	Approval Agency	Applications	Voltage - Output 1	Current - Output 1	Voltage - Isolation	Efficiency	Voltage - Output 1 [custom]

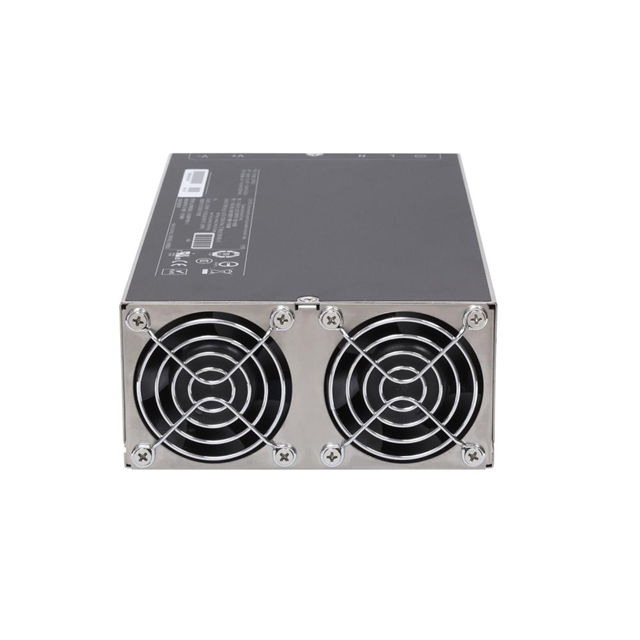

ARTESYN / Advanced Energy LCM1000Q-T-8		1	Adjustable Output DC Input Capable PFC Remote Sense Standby Output Universal Input	60601-1 60950-1 62368-1	1 kW	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	264 VAC	90 VAC	Chassis Mount	Front End	CB CCC CE cUL TUV UL	ITE (Commercial) Medical	24 V	41.7 A	4000 V	90 %
ARTESYN / Advanced Energy LCM1000N-T		1	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input		1 kW	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	264 VAC	90 VAC	Chassis Mount	Front End	BMSI CB CCC cCSAus CE TUV	ITE (Commercial) Medical	15 V	66.7 A	4000 V	90 %

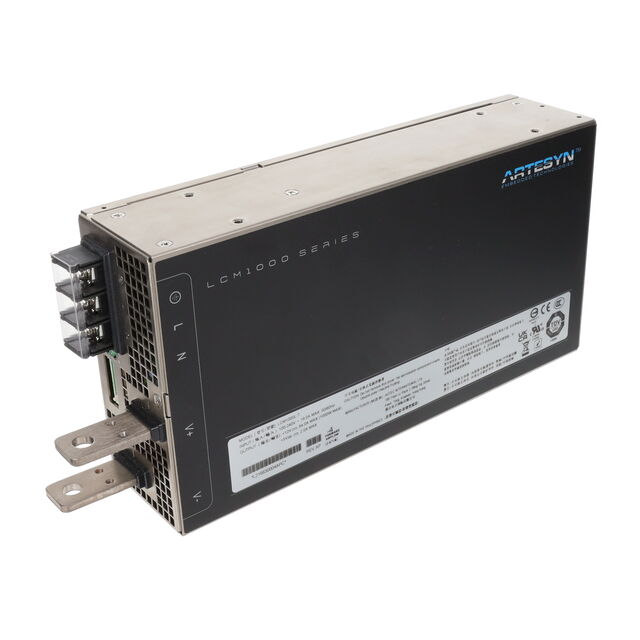

ARTESYN / Advanced Energy LCM1000L-T-4		1	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input		1 kW	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	264 VAC	90 VAC	Chassis Mount	Front End	BMSI CB CCC cCSAus CE TUV	ITE (Commercial) Medical	12 V	83.3 A	4000 V	90 %
ARTESYN / Advanced Energy LCM1000U-T		1	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input		1 kW	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	264 VAC	90 VAC	Chassis Mount	Front End	BMSI CB CCC cCSAus CE TUV	ITE (Commercial) Medical		27.8 A	4000 V	90 %	36 V
ARTESYN / Advanced Energy LCM1000L-T		1	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Universal Input		1 kW	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	264 VAC	90 VAC	Chassis Mount	Front End	BMSI CB CCC cCSAus CE TUV	ITE (Commercial) Medical	12 V	83.3 A	4000 V	90 %
ARTESYN / Advanced Energy LCM1000Q-T-4		1	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input		1 kW	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	264 VAC	90 VAC	Chassis Mount	Front End	BMSI CB CCC cCSAus CE TUV	ITE (Commercial) Medical	24 V	41.7 A	4000 V	90 %
ARTESYN / Advanced Energy LCM1000N-T-4		1	Adjustable Output I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input		1 kW	254 mm	5.2 "	10 in	132 mm	61.7 mm	2.43 "	264 VAC	90 VAC	Chassis Mount	Front End	BMSI CB CCC cCSAus CE TUV	ITE (Commercial) Medical	15 V	66.7 A	4000 V	90 %
