PPPC262 Series

Catalog

CONN HDR 52POS 0.1 GOLD PCB

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Insulation Material	Contact Finish - Post	Number of Positions	Current Rating (Amps)	Termination	Fastening Type	Number of Rows [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Contact Type	Number of Positions Loaded	Insulation Height	Insulation Height	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish - Mating	Insulation Height [z]

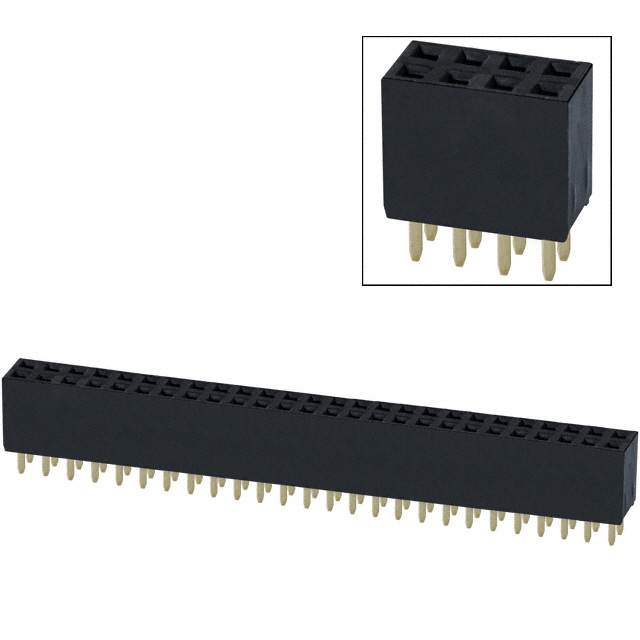

Sullins Connector Solutions PPPC262LFBN	Square	Phosphor Bronze	Flash	Polyester	Gold	52	3 A	Solder	Push-Pull	2	Through Hole	-40 C	105 ░C	0.1 "	2.54 mm	UL94 V-0	Flash	0.1 in	2.54 mm	250 V	Female Socket	All	0.335 "	8.51 mm	Header	0.126 "	3.2 mm	Black	Gold
Sullins Connector Solutions PPPC262KFMS	Square	Phosphor Bronze	Flash	Polyester	Gold	52	3 A	Solder	Push-Pull	2	Surface Mount	-40 C	125 °C	0.1 "	2.54 mm	UL94 V-0	Flash	0.1 in	2.54 mm	250 V	Female Socket	All		7.6 mm	Header			Black	Gold	0.299 "
