45124 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

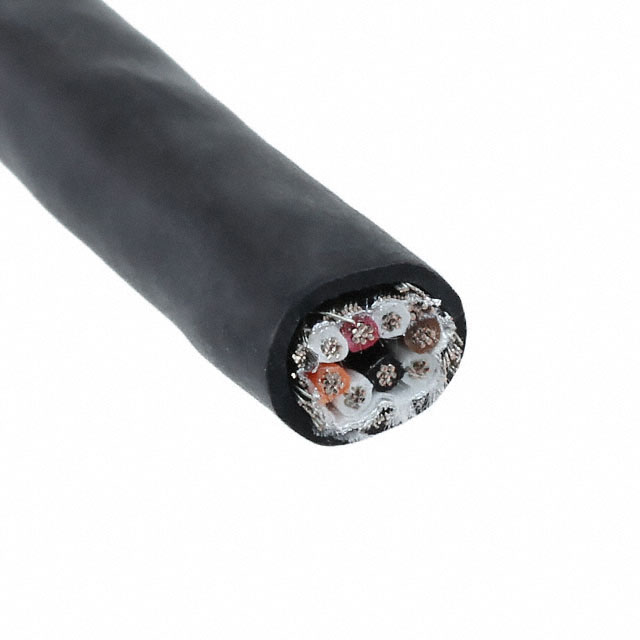

MULTIPAIR CABLE, XTRA-GUARD® 4, SHIELDED, 4 PAIR, 22 AWG, 0.35 MM², 100 FT, 30.5 M
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Shield Material | Jacket Color | Shield Coverage | Features | Number of Conductors | Conductor Material | Conductor Insulation | Wire Gauge | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Shield Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -50 °C | 125 °C | Thermoplastic Elastomer (TPE) | Copper Tinned Suprashield® | Black | 70 % 100 % | Biological Compatibility Drain Wire Rip Cord | 8 | Copper Tinned | Thermoplastic Elastomer (TPE) | 22 AWG | 30.5 m | 100 ft | 7 | 30 AWG | 300 V | 1.143 mm | 0.045 in | Multi-Pair | 0.368 in | 9.35 mm | ISO 10993 | Braid Foil | ||
 ALPHA WIRE | -50 °C | 125 °C | Thermoplastic Elastomer (TPE) | Copper Tinned Suprashield® | Slate | 70 % 100 % | Biological Compatibility Drain Wire Rip Cord | 8 | Copper Tinned | Thermoplastic Elastomer (TPE) | 22 AWG | 7 | 30 AWG | 300 V | 1.143 mm | 0.045 in | Multi-Pair | 0.368 in | 9.35 mm | ISO 10993 | Braid Foil | 1000 ft | 304.8 m |
