M2013K1 Series
Manufacturer: NKK Switches
Beta
⌘K

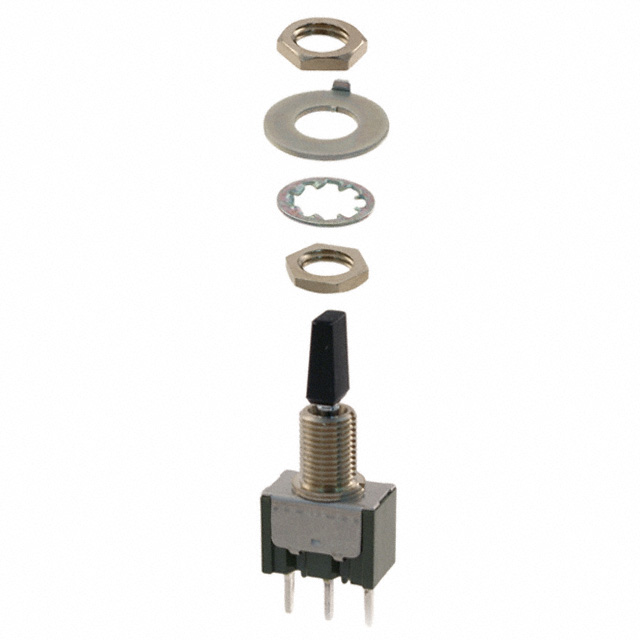

SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Actuator Material | Voltage Rating - AC | Illumination | Features | Actuator Type | Bushing Thread | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Circuit | Panel Cutout Dimensions [diameter] | Switch Function | Termination Style | Current Rating (Amps) | Actuator Length [x] | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Polyamide (PA) Nylon | 125 V | Non-Illuminated | Black Cap | Snap On Paddle | 1/4-40 | 85 °C | -30 ░C | Panel Mount | SPDT | 6.5 mm | On-Off-On | Solder Lug | 3 A 6 A | 9.4 mm | 30 V |
 NKK Switches | 25000 Steps | Brass Chrome Plated | 125 V | Non-Illuminated | Blue Cap | Snap On Paddle | 1/4-40 | 85 °C | -30 ░C | Panel Mount | SPDT | 6.5 mm | On-Off-On | Solder Lug | 3 A 6 A | 9.4 mm | 30 V |
 NKK Switches | 25000 Steps | Polyamide (PA) Nylon | 125 V | Non-Illuminated | Black Cap | Snap On Paddle | 1/4-40 | 85 °C | -30 ░C | Panel Mount | SPDT | 6.5 mm | On-Off-On | PC Pin | 3 A 6 A | 9.4 mm | 30 V |
