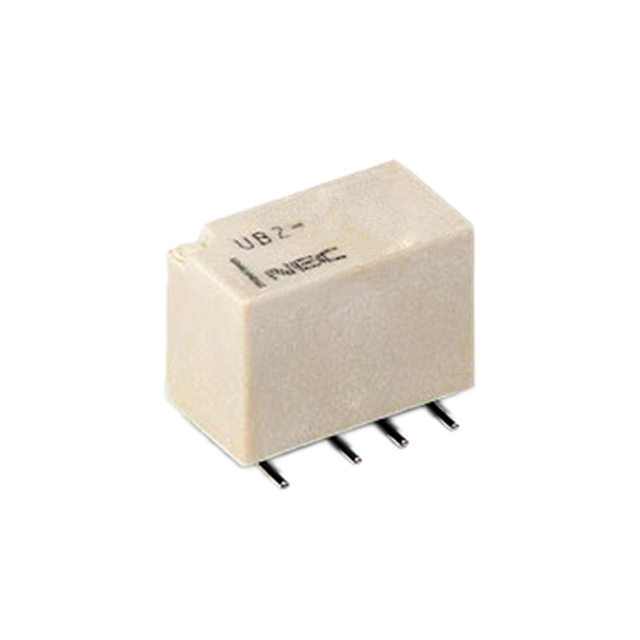

UB2-5S Series
Manufacturer: KEMET
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 5V
| Part | Coil Resistance | Termination Style | Coil Type | Coil Voltage | Load - Max Switching | Contact Material | Release Time | Approval Agency | Operate Time | Mounting Type | Contact Form | Relay Type | Contact Rating (Current) | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 250 Ohms | Gull Wing | Latching Single Coil | 5 VDC | 220 W 250 VA | Gold Alloy Silver Alloy | 1 ms | CSA TUV UL | 2 ms | Surface Mount | DPDT (2 Form C) | General Purpose | 1 A | 220 VDC 250 VAC | 85 °C | -40 C | 0.02 A | 3.75 VDC |
KEMET | 250 Ohms | Gull Wing | Latching Single Coil | 5 VDC | 220 W 250 VA | Gold Alloy Silver Alloy | 1 ms | CSA TUV UL | 2 ms | Surface Mount | DPDT (2 Form C) | General Purpose | 1 A | 220 VDC 250 VAC | 85 °C | -40 C | 0.02 A | 3.75 VDC |
