PQAE50 Series

Manufacturer: CUI Inc.

Catalog

DC-DC ISOLATED, 50 W, 18~36 VDC

Part	Number of Outputs	Current - Output (Max) [Max]	Features	Type	Voltage - Isolation	Standard Number	Voltage - Input (Min) [Min]	Approval Agency	Mounting Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Power (Watts)	Package / Case	Voltage - Input (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	DC Voltage - Input (Min) [Min]	Input Type	DC Voltage - Input (Max) [Max]
CUI Inc. PQAE50-D24-S15-DH	1	3.333 A	Adjustable Output Heat Sink Remote On/Off	Isolated Module	1.5 kV	62368-1	18 V	CE	Through Hole	15 V	105 C	-40 °C	91 %	50 W	6-DIP Module	36 V	ITE (Commercial)	50.8 mm	25.4 mm	0.65 in	1 "	2 in	16.5 mm
CUI Inc. PQAE50-D24-S5-DIN	1	10 A	Adjustable Output Remote On/Off		1.5 kV	62368-1		CE		5 V	105 C	-40 °C	91 %	50 W			ITE (Commercial)	2.99 in	1.24 in	25.8 mm	31.5 mm	76 mm	1.02 in	18 V	DC	36 V
CUI Inc. PQAE50-D24-S15-TH	1	3.333 A		Enclosed	1.5 kV	62368-1	18 V	CE	Chassis Mount	15 V	105 C	-40 °C	91 %	50 W		36 V	ITE (Commercial)	76 mm	31.5 mm	1 in	1.24 in	2.99 in	25.3 mm

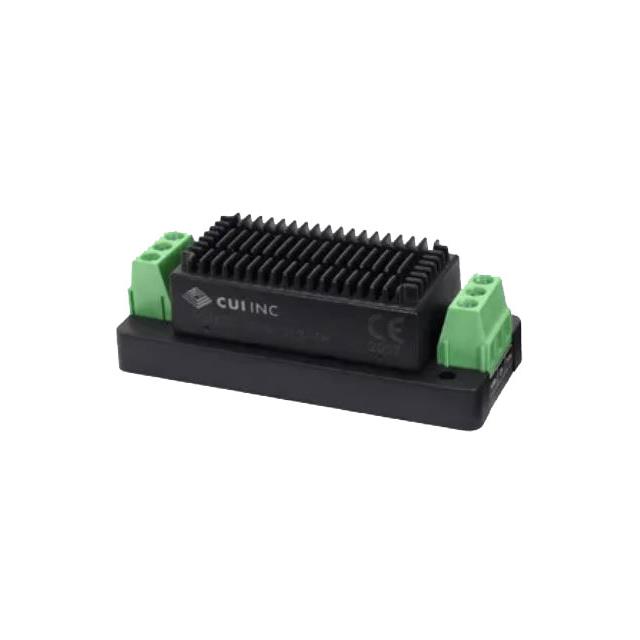

CUI Inc. PQAE50-D48-S15-TH	1	3.333 A		Enclosed	1.5 kV	62368-1	36 V	CE	Chassis Mount	15 V	105 C	-40 °C	92 %	50 W		75 V	ITE (Commercial)	76 mm	31.5 mm	1 in	1.24 in	2.99 in	25.3 mm
CUI Inc. PQAE50-D24-S15-DIN	1	3.333 A	Adjustable Output Remote On/Off		1.5 kV	62368-1		CE		15 V	105 C	-40 °C	91 %	50 W			ITE (Commercial)	2.99 in	1.24 in	25.8 mm	31.5 mm	76 mm	1.02 in	18 V	DC	36 V
CUI Inc. PQAE50-D24-S24-DINH	1	2.083 A	Adjustable Output Heat Sink Remote On/Off		1.5 kV	62368-1		CE		24 V	105 C	-40 °C	91 %	50 W			ITE (Commercial)	76 mm	31.5 mm	1.18 in	1.24 in	2.99 in	29.9 mm	18 V	DC	36 V
CUI Inc. PQAE50-D24-S3-DINH	1	10 A	Adjustable Output Heat Sink Remote On/Off		1.5 kV	62368-1		CE		3.3 V	105 C	-40 °C	91 %	33 W			ITE (Commercial)	76 mm	31.5 mm	1.18 in	1.24 in	2.99 in	29.9 mm	18 V	DC	36 V
CUI Inc. PQAE50-D24-S5-TH	1	10 A		Enclosed	1.5 kV	62368-1	18 V	CE	Chassis Mount	5 V	105 C	-40 °C	91 %	50 W		36 V	ITE (Commercial)	76 mm	31.5 mm	1 in	1.24 in	2.99 in	25.3 mm
CUI Inc. PQAE50-D48-S3-DIN	1	10 A	Adjustable Output Remote On/Off		1.5 kV	62368-1		CE		3.3 V	105 C	-40 °C	91 %	33 W			ITE (Commercial)	2.99 in	1.24 in	25.8 mm	31.5 mm	76 mm	1.02 in	36 V	DC	75 V

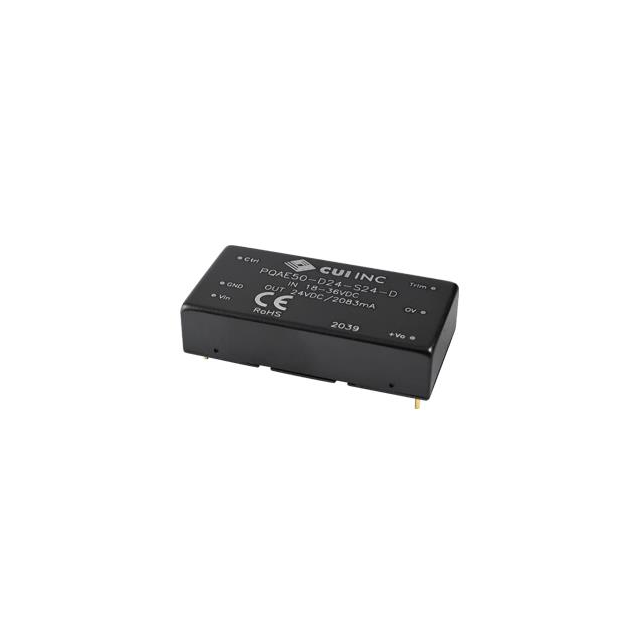

CUI Inc. PQAE50-D24-S15-D	1	3.333 A	Adjustable Output Remote On/Off	Isolated Module	1.5 kV	62368-1	18 V	CE	Through Hole	15 V	105 C	-40 °C	91 %	50 W	6-DIP Module	36 V	ITE (Commercial)	50.8 mm	25.4 mm	0.46 in	1 "	2 in	11.8 mm
