325-104 Series
Manufacturer: EDAC Inc.
Beta
⌘K

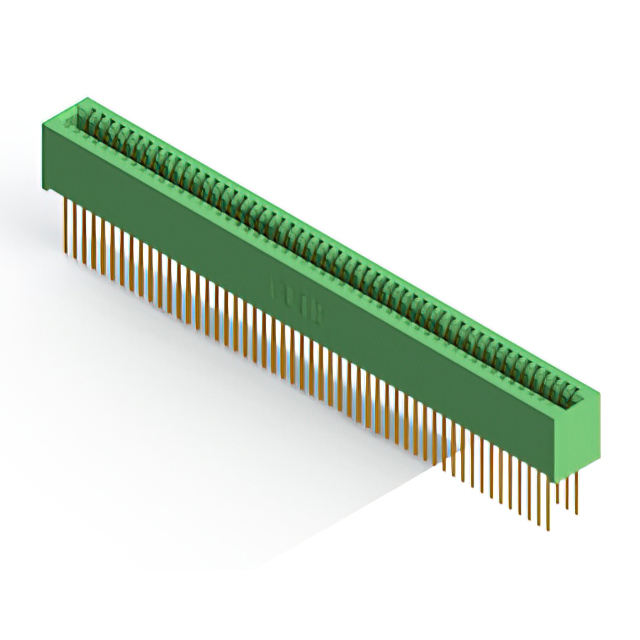

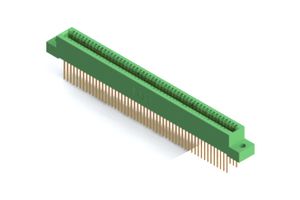

CARD EDGE CONNECTOR, DUAL SIDE, 3.18 MM, 104 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Color | Mounting Type | Termination | Pitch | Pitch | Card Thickness | Card Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Gender | Number of Positions/Bay/Row | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Finish | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Through Hole | Wire Wrap | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | Copper Alloy | Female | 52 | 2 | -65 ░C | 125 °C | Dual | 104 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | Cantilever |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Through Hole | Solder | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Female | 52 | 2 | -65 ░C | 125 °C | Dual | 104 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | Cantilever | ||
EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Through Hole | Solder | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Female | 52 | 2 | -65 ░C | 125 °C | Dual | 104 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | Cantilever | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Green | Through Hole | Wire Wrap | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Copper Alloy | Female | 52 | 2 | -65 ░C | 125 °C | Dual | 104 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Gold | Cantilever |
