V15T1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

BASIC / SNAP ACTION SWITCHES V BASICS

Part	Voltage Rating - AC	Circuit	Mounting Type	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Current Rating (Amps)	Mechanical Life	Pretravel	Pretravel	Operating Position	Operating Position	Operating Force	Overtravel [custom]	Overtravel [custom]	Differential Travel	Differential Travel	Release Force	Voltage Rating - DC	Electrical Life
Honeywell Sensing and Productivity Solutions V15T16-DZ100B02	125 V	SPDT	Chassis Mount	On-Mom	-25 °C	125 °C	Quick Connect	Lever Straight	16 A	1000000 Cycles

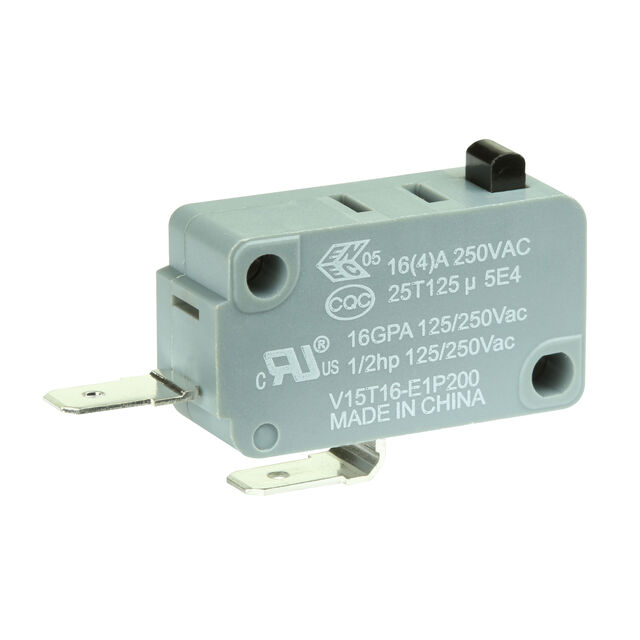

Honeywell Sensing and Productivity Solutions V15T16-E1P200	125 V	SPST-NO	Chassis Mount	Off-Mom	-25 °C	125 °C	Quick Connect	Round (Pin Plunger)	16 A	1000000 Cycles	0.06 in	1.5 mm	14.7 mm	0.579 in	0.2 kgf	0.03 "	0.76 mm	0.5 mm	0.02 in	50 gf
Honeywell Sensing and Productivity Solutions V15T10-CZ100	125 V	SPDT	Chassis Mount	On-Mom	-25 °C	125 °C	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	0.5 mA 10 A	1000000 Cycles	0.06 in	1.5 mm	14.7 mm	0.579 in	100 gf	0.03 "	0.76 mm	0.5 mm	0.02 in	25 gf	125 VDC

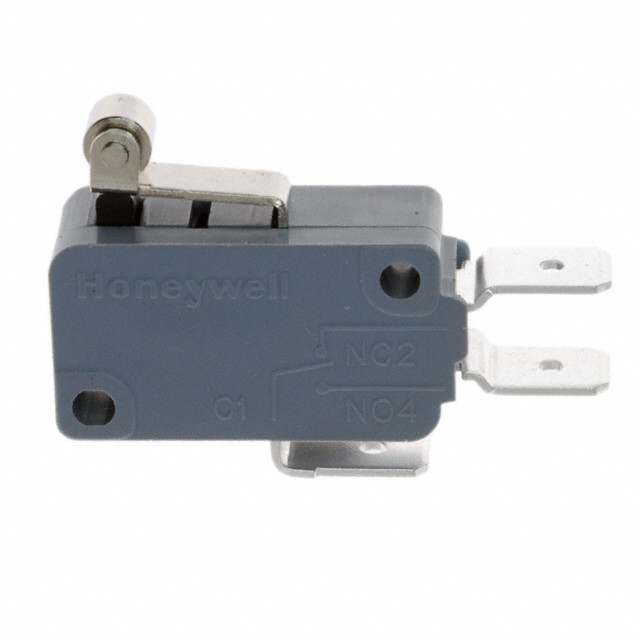

Honeywell Sensing and Productivity Solutions V15T16-CZ100A05-K	250 V	SPDT	Chassis Mount	On-Mom	-25 °C	125 °C	Quick Connect - 0.250" (6.3mm)	Lever Roller	16 A	5000000 Cycles	0.063 in	1.6 mm	20.6 mm	0.812 in	120 gf	0.03 "	0.76 mm	0.4 mm	0.016 in	20 gf		50000 Cycles

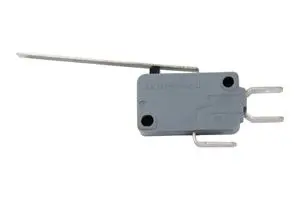

Honeywell Sensing and Productivity Solutions V15T16-CZ100A03	125 V	SPDT	Chassis Mount	On-Mom	-25 °C	125 °C	Quick Connect - 0.250" (6.3mm)	Lever Straight	16 A	1000000 Cycles	0.25 in	6.35 mm	15.3 mm	0.602 in	30 gf	0.094 "	2.4 mm	2.6 mm	0.103 in
Honeywell Sensing and Productivity Solutions V15T16-CZ300A02	250 V	SPDT	Chassis Mount	On-Mom	-25 °C	125 °C	Quick Connect - 0.250" (6.3mm)	Lever Straight	16 A	5000000 Cycles	0.125 in	3.2 mm	15.3 mm	0.602 in	180 gf	0.051 "	1.3 mm	1.2 mm	0.047 in	30 gf		50000 Cycles
Honeywell Sensing and Productivity Solutions V15T16-EZ300A02	125 V	SPDT	Chassis Mount	On-Mom	-25 °C	125 °C	Quick Connect	Lever Straight	16 A	1000000 Cycles
Honeywell Sensing and Productivity Solutions V15T16-EZ300	250 V	SPDT	Chassis Mount	On-Mom	-25 °C	125 °C	Quick Connect	Round (Pin Plunger)	16 A	1000000 Cycles	0.063 in	1.6 mm	14.7 mm	0.579 in	300 gf	0.03 "	0.76 mm	0.4 mm	0.016 in	75 gf		50000 Cycles

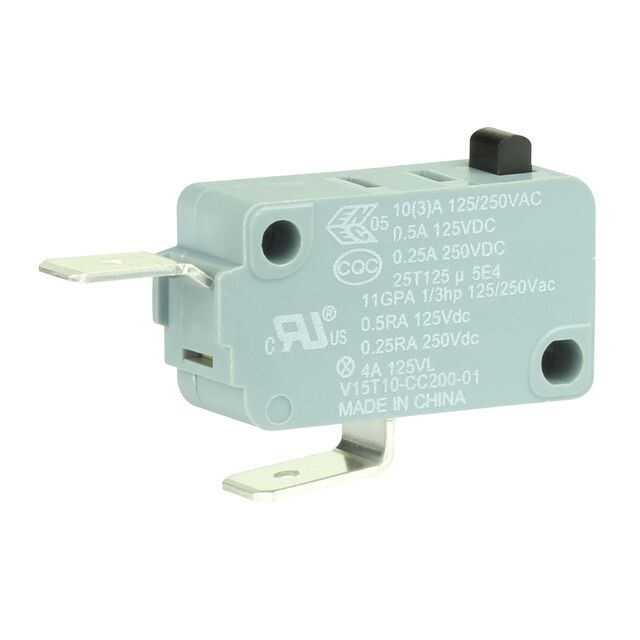

Honeywell Sensing and Productivity Solutions V15T10-CC200-01	125 V	SPST-NC	Chassis Mount	On-Mom	-25 °C	125 °C	Quick Connect - 0.250" (6.3mm)	Round (Pin Plunger)	0.5 mA 10 A	500000 Cycles	0.06 in	1.5 mm	14.7 mm	0.579 in	0.2 kgf	0.03 "	0.76 mm	0.5 mm	0.02 in	50 gf	125 VDC

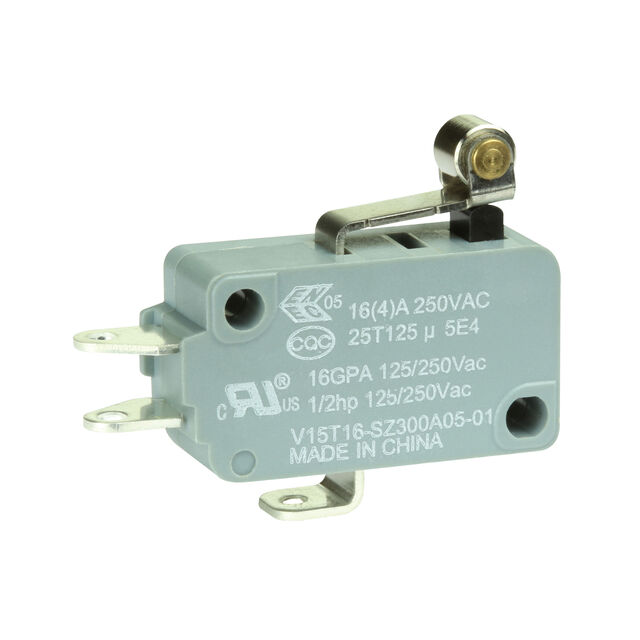

Honeywell Sensing and Productivity Solutions V15T16-SZ300A05-01	125 V	SPDT	Chassis Mount	On-Mom	-25 °C	125 °C	Solder Lug	Lever Roller	16 A	1000000 Cycles
