1761465 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN PCI EXP FMALE 36POS 0.039

Part	Gender	Features	Contact Material	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions	Material - Insulation	Color	Card Type	Mounting Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]

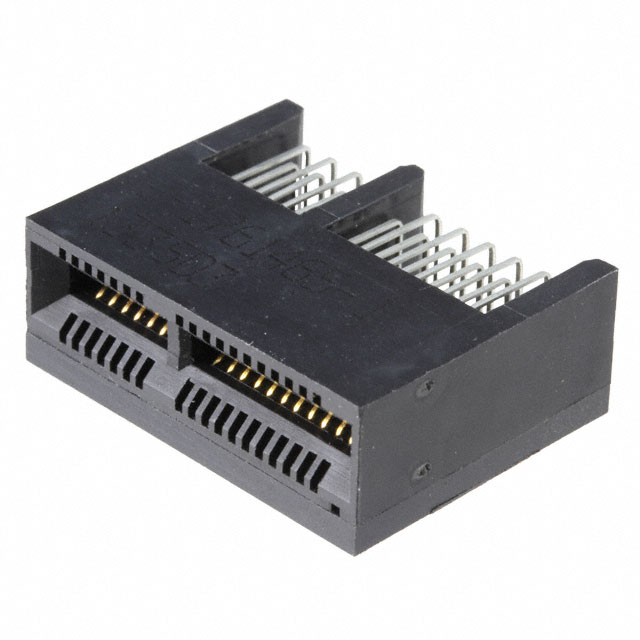

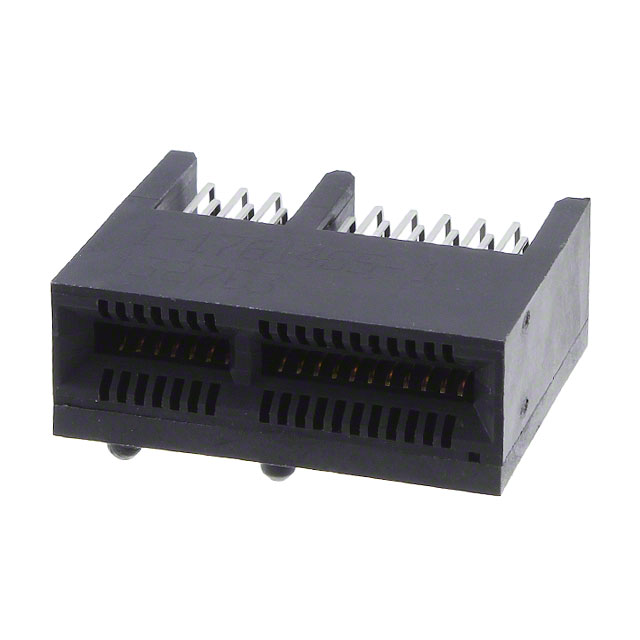

TE Connectivity Raychem Cable Protection 1-1761465-1	Female	Board Guide	Copper Alloy	0.062 in	1.57 mm	0.76 Ám	30 Áin	Dual	Solder	0.039 in	1 mm	2	36	Thermoplastic	Black	PCI Express™	Through Hole Right Angle	Gold	85 °C	-40 °C

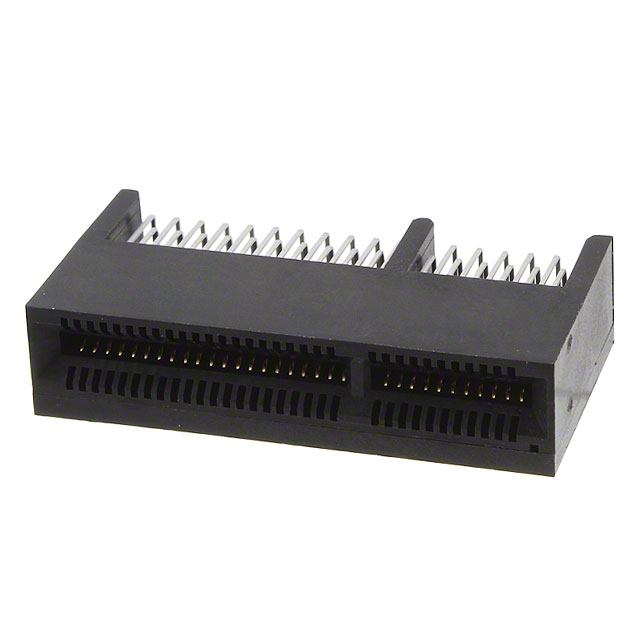

TE Connectivity Raychem Cable Protection 1761465-2	Female	Board Guide	Copper Alloy	0.062 in	1.57 mm	0.76 Ám	30 Áin	Dual	Solder	0.039 in	1 mm	2	64	Thermoplastic	Black	PCI Express™	Through Hole Right Angle	Gold	85 °C	-40 °C

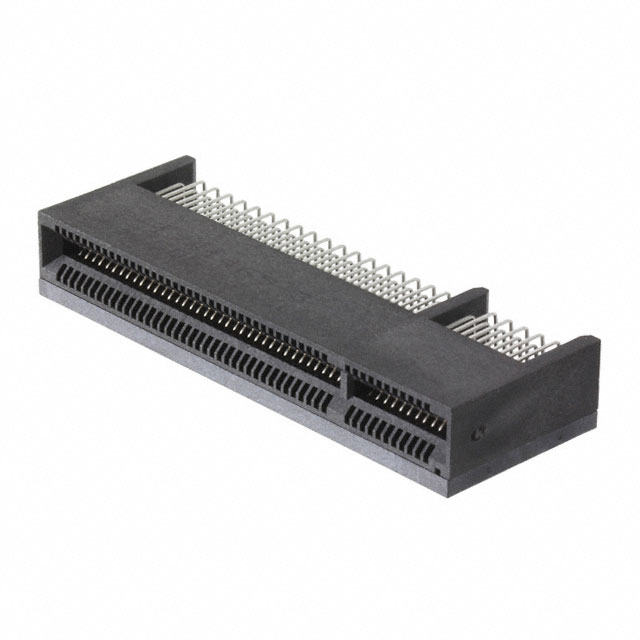

TE Connectivity Raychem Cable Protection 2-1761465-3	Female	Board Guide	Copper Alloy	0.062 in	1.57 mm	0.38 µm	15 µin	Dual	Solder	0.039 in	1 mm	2	98	Thermoplastic	Black	PCI Express™	Through Hole Right Angle	Gold	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 1761465-1	Female	Board Guide	Copper Alloy	0.062 in	1.57 mm	0.76 Ám	30 Áin	Dual	Solder	0.039 in	1 mm	2	36	Thermoplastic	Black	PCI Express™	Through Hole Right Angle	Gold	85 °C	-40 °C

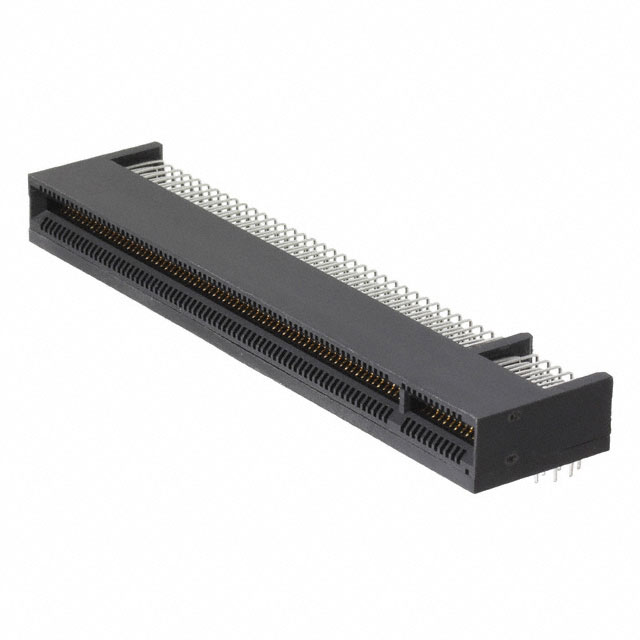

TE Connectivity Raychem Cable Protection 3-1761465-4	Female	Board Guide	Copper Alloy	0.062 in	1.57 mm	0.38 µm	15 µin	Dual	Solder	0.039 in	1 mm	2	164	Thermoplastic	Black	PCI Express™	Through Hole Right Angle	Gold	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 4-1761465-2	Female	Board Guide	Copper Alloy	0.062 in	1.57 mm	0.76 Ám	30 Áin	Dual	Solder	0.039 in	1 mm	2	64	Thermoplastic	Black	PCI Express™	Through Hole Right Angle	Gold	85 °C	-40 °C
TE Connectivity Raychem Cable Protection 4-1761465-4	Female	Board Guide	Copper Alloy	0.062 in	1.57 mm	0.76 Ám	30 Áin	Dual	Solder	0.039 in	1 mm	2	164	Thermoplastic	Black	PCI Express™	Through Hole Right Angle	Gold	85 °C	-40 °C
