RJHSE548 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

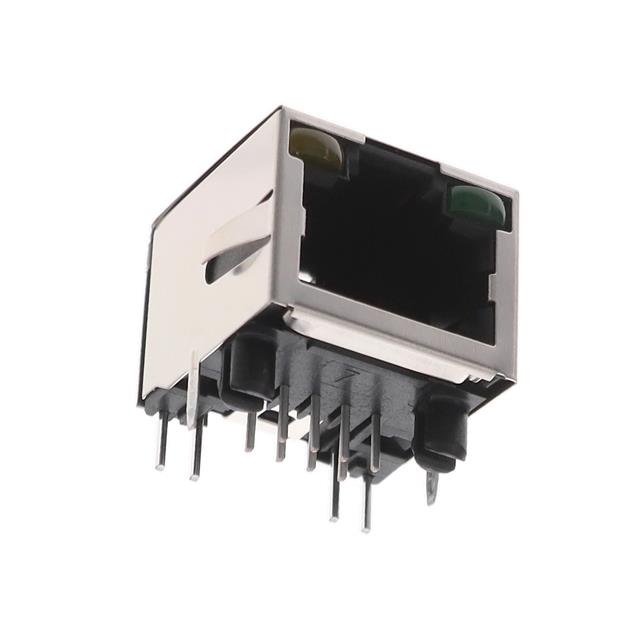

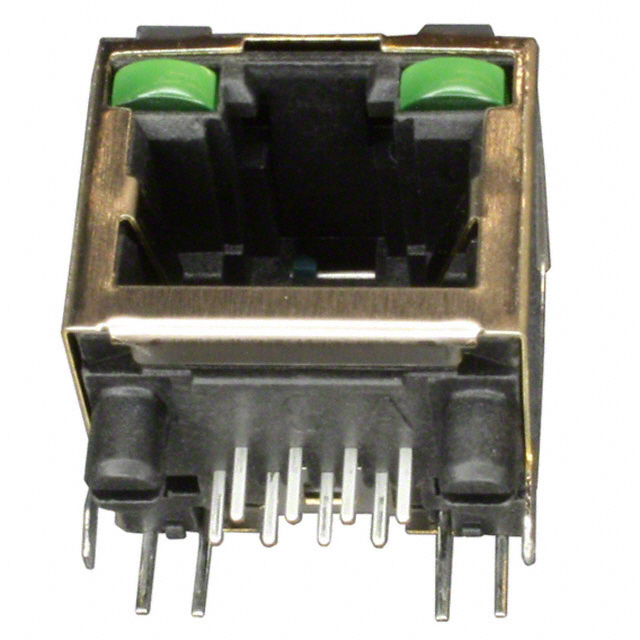

CONN MOD JACK 8P8C R/A SHLD
| Part | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Orientation | Features | Connector Type | Tab Direction | Shielding | Contact Finish | Number of Rows | LED Color | Number of Positions/Contacts | Contact Material | Termination | Number of Ports | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Green Green - Red | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Orange Yellow - Green | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Green | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Does Not Contain LED | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Yellow Yellow - Green | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole | |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Green Red | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Green Orange - Green Orange | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Green Red Yellow | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | 90 ° | Board Lock | Jack | Up | EMI Finger Shielded | Gold | 1 | Yellow - Green | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Solder | 1 | Through Hole |
