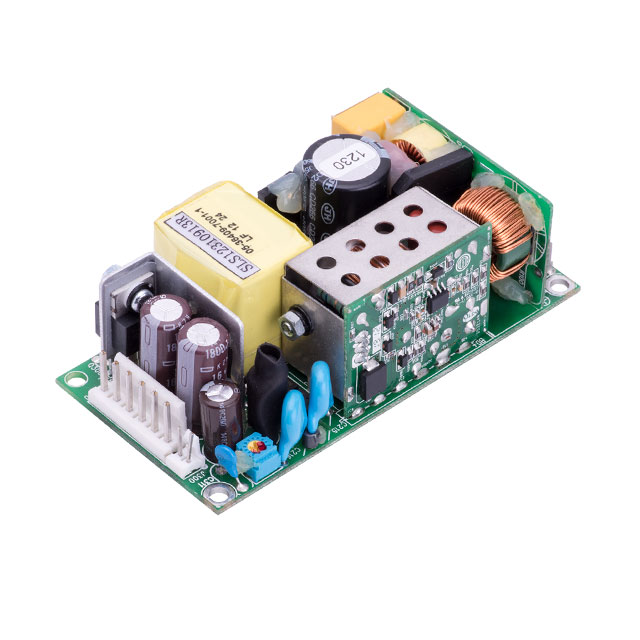

MINT1150 Series

Catalog

AC/DC CONVERTER 48V 100W

Part	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Voltage - Output 1	Approval Agency	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Isolation	Type	Features	Power (Watts)	Power (Watts)	Current - Output 1
SL POWER / Advanced Energy MINT1150A4806K01	89 %	70 °C	-10 °C	264 VAC	90 VAC	1	48 V	CE	Chassis Mount	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Medical	4000 V	Open Frame	Adjustable Output DC Input Capable PFC Universal Input	100 W	150 W	2.08 A
SL POWER / Advanced Energy MINT1150A2406K01	89 %	70 °C	-10 °C	264 VAC	90 VAC	1	24 V	CE	Chassis Mount	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Medical	4000 V	Open Frame	Adjustable Output DC Input Capable PFC Universal Input	100 W	150 W	4.17 A
SL POWER / Advanced Energy MINT1150A5606K01	89 %	70 °C	-10 °C	264 VAC	90 VAC	1	56 V	CE	Chassis Mount	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Medical	4000 V	Open Frame	Adjustable Output DC Input Capable PFC Universal Input	100 W	150 W	1.79 A

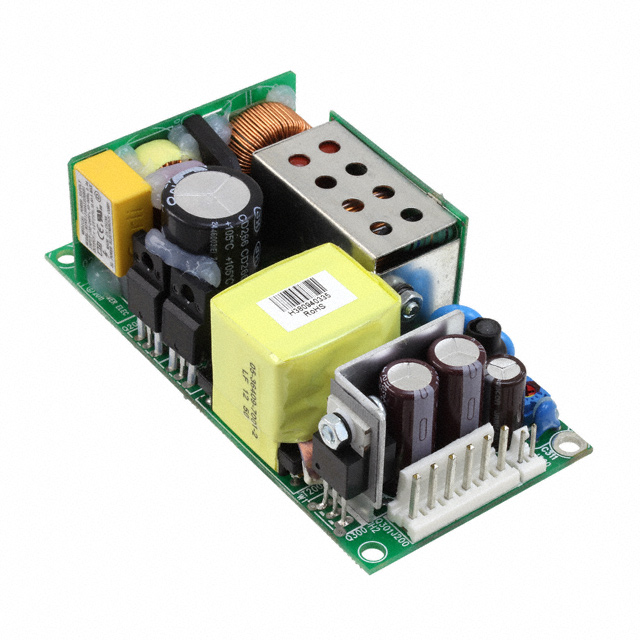

SL POWER / Advanced Energy MINT1150A1206K01	89 %	70 °C	-10 °C	264 VAC	90 VAC	1	12 V	CE	Chassis Mount	101.6 mm	50.8 mm	33 mm	101.6 mm	50.8 mm	1.3 in	Medical	4000 V	Open Frame	Adjustable Output DC Input Capable PFC Universal Input	100 W	150 W	8.33 A
